Tait Matrix 4G Body Worn Camera – Professional Evidence Capture with 4G Live Streaming

Intelligent Evidence When and Where You Need It Most

The Tait Matrix 4G Body Worn Camera is a rugged, mission-critical wearable camera designed for law enforcement, emergency services, security professionals, and frontline workers across Australia. With integrated 4G LTE connectivity and live-streaming capabilities, the Matrix 4G ensures critical moments are captured, transmitted, and protected in real-time.

Why Choose the Tait Matrix 4G Body Worn Camera?

Proof That Protects, Safety You Can See

The Matrix 4G is your partner in truth and safety. It captures clear, court-ready evidence, supports your team with real-time streaming, and safeguards data with military-grade encryption. When situations escalate, instant duress alerts deliver live HD video and GPS location directly to command centers, ensuring backup arrives with full situational awareness.

Key Benefits

Capture Clear Evidence and Provide Instant Support
Record every interaction in high definition with GPS, time, and user ID watermarks for unquestionable authenticity. Clear video evidence builds trust and transparency while protecting both officers and the public.

Live Streaming When It Matters Most
Stream in real-time over 4G or WiFi so command knows exactly what’s happening on the ground. Evidence and alerts are delivered instantly, not hours later. Going live saves lives.

Built for Australian Conditions
IP67 waterproof rated, 2m drop tested, and MIL-STD-810G certified for extreme temperatures and rough handling. The Matrix 4G performs reliably in rain, dust, heat, and challenging Australian environments.

Advanced Features

Every Detail, Every Time

• Wide-angle 140° lens captures the full scene in crystal-clear quality
• 2560x1440p HD video recording at 30 FPS with multiple resolution options
• Snapshot capability during video recording for instant evidence capture
• GPS/GNSS location tracking with speed, lat/long watermarking on every file
• Time and user ID stamping ensures chain of custody for court-ready evidence

Day or Night Confidence

• Dual IR illuminators ensure faces and details are visible even in total darkness
• Ultra-low light performance captures clear color video in challenging lighting
• Automatic night vision adapts instantly to changing light conditions
• Up to 10 meters IR range with visible face detection

4G Live Streaming Technology

• 4G LTE Cat-4 connectivity with up to 150/50 Mbps speeds
• Live stream at 1280×720 or 848×480 resolution at 5-30 FPS
• Instant duress alerts send location and live video to command centers
• WiFi 802.11ac dual-band (2.4/5GHz) for station-based uploads
• Bluetooth 5.0 for mobile app integration and peer-to-peer triggering

Full-Shift Power

• 12-hour battery life for standard HD recording (14 hours at 720p)
• 6 hours continuous live streaming in HD
• 3450mAh lithium-ion battery with fast charging via pogo-pin dock or USB-C
• Under 5 hours to full charge

Safeguarded Data Security

• AES256 encryption protects data at rest and in transit
• RSA2048 encryption secures every file and log
• 64GB internal storage (non-removable) with optional 128GB or 256GB
• Up to 65 hours of 1080p recording storage
• ISO27001 certified for information security standards

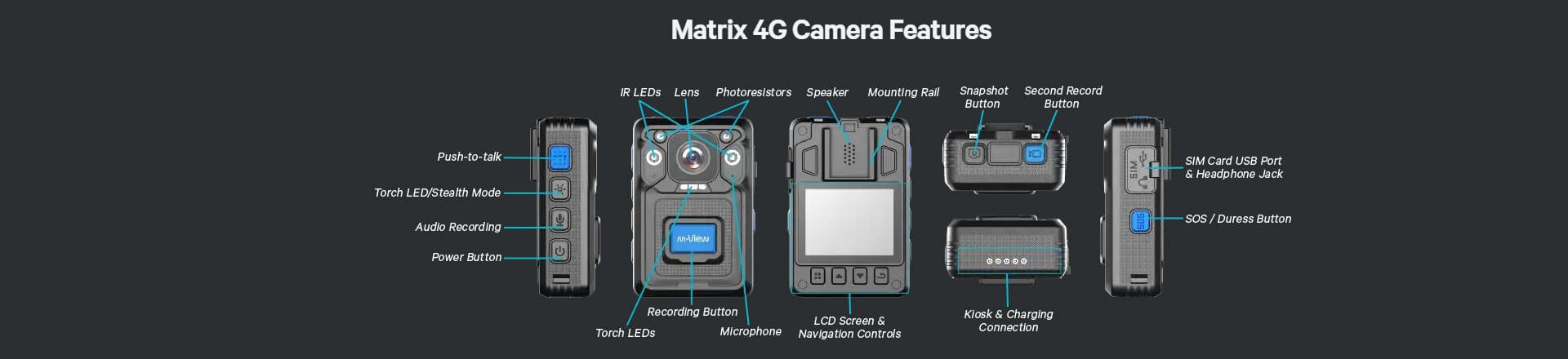

Designed to Move With You

• Lightweight 162g – comfortable for all-day wear
• Compact dimensions (84.5 x 56.3 x 27.3 mm)
• Glove-friendly controls for operation in any conditions
• Heads-up LCD screen interface feels intuitive from day one
• Metal clip included for secure mounting on uniforms or vests

Pre and Post-Event Recording

• Pre-record up to 120 seconds (resolution dependent) captures context before incidents
• Post-record up to 60 seconds ensures nothing is missed after recording stops

Built to Last – Military-Grade Ruggedness

The Matrix 4G is engineered for the toughest conditions Australian frontline workers face:

• IP67 ingress protection – fully sealed against dust and water immersion
• 2-meter drop tested to concrete surfaces
• MIL-STD-810H certified for shock, vibration, and extreme environments
• IEC60068-2-31 rough handling certification
• Operating temperature -10°C to +60°C
• Storage temperature -20°C to +55°C

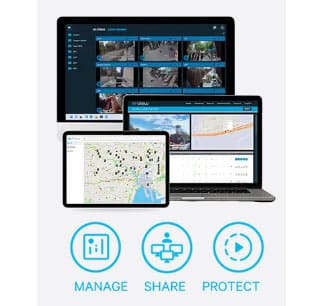

Altitude Digital Evidence Management System

The Matrix 4G seamlessly integrates with Altitude, the secure digital evidence management platform that brings together high-quality video, audio, and data from body-worn cameras.

Unified Evidence Ecosystem

Altitude is the secure home for all your digital evidence, protecting truth from the moment it’s captured through to courtroom presentation.

Live Situational Awareness

See what matters in real-time. Stream from multiple Matrix 4G cameras simultaneously, track officer locations on maps, and give supervisors the visibility they need to act with clarity and confidence.

Automatic Evidence Collection

Altitude collects and uploads footage from body-worn cameras immediately, whether officers are in the field or at the station. Your team stays focused on protecting people, not managing technical processes.

AI-Powered Privacy Protection

Altitude safeguards personal information with built-in tools:

• Automatic face blurring with AI-powered video redaction
• Audio redaction to mute private conversations
• Privacy protection while keeping evidence secure and court-admissible

ISO27001 Certified Security

Both m-View and Tait proudly hold ISO27001 certification, ensuring the highest standards in information security management.

Who Uses the Tait Matrix 4G?

Law Enforcement

Police officers across Australia rely on the Matrix 4G for evidence capture, officer safety, and public accountability. Live streaming and duress alerts ensure backup arrives with full situational awareness.

Emergency Services

Paramedics, firefighters, and emergency responders use the Matrix 4G to document incidents, capture training footage, and maintain records for legal protection.

Security Professionals

Security guards, event security, and private protection services depend on the Matrix 4G for clear evidence capture and real-time communication with command centers.

Council and Government Workers

Council officers, parking inspectors, and government field workers use body-worn cameras to protect against threats, document interactions, and reduce complaints.

Mining and Industrial Sites

Safety officers and site supervisors in mining operations use the Matrix 4G to document safety incidents, conduct inspections, and maintain compliance records.

Technical Specifications

Video Recording:

• 2560x1440p @ 30 FPS
• 1920x1080p @ 30 or 60 FPS
• 1280x720p @ 30 or 60 FPS
• 848x480p @ 30 or 60 FPS

Photo Capture:

• 4MP, 8MP, 12MP, 16MP, 32MP, 40MP JPEG
• Snapshot capture during video recording

Connectivity:

• 4G/LTE Cat-4 (150/50 Mbps) with SIM card slot
• WiFi 802.11a/b/n/ac dual-band (2.4/5GHz)
• Bluetooth 5.0 with BLE

Battery & Charging:

• 3450mAh lithium-ion integrated battery
• 12 hours recording / 6 hours live streaming
• Pogo-pin dock and USB-C charging (under 5 hours)

Storage:

• 64GB internal (non-removable) standard
• Optional 128GB or 256GB storage

Certifications:

• CE Red, FCC, RCM
• WEEE, REACH, ROHS compliant
• ISO27001 certified (information security)

Included Accessories:

• USB cable
• Charging cradle
• Metal clip for uniform mounting

Get Started with Tait Matrix 4G

The Tait Matrix 4G Body Worn Camera represents the next generation of evidence capture technology. With 4G live streaming, military-grade durability, and seamless integration with Altitude evidence management, it’s the complete solution for frontline professionals who demand reliability under pressure.
