Digital RADIO COMMUNICATIONS

MiningTelecoms doesn't sell toys - we supply radio communication lifelines to essential services

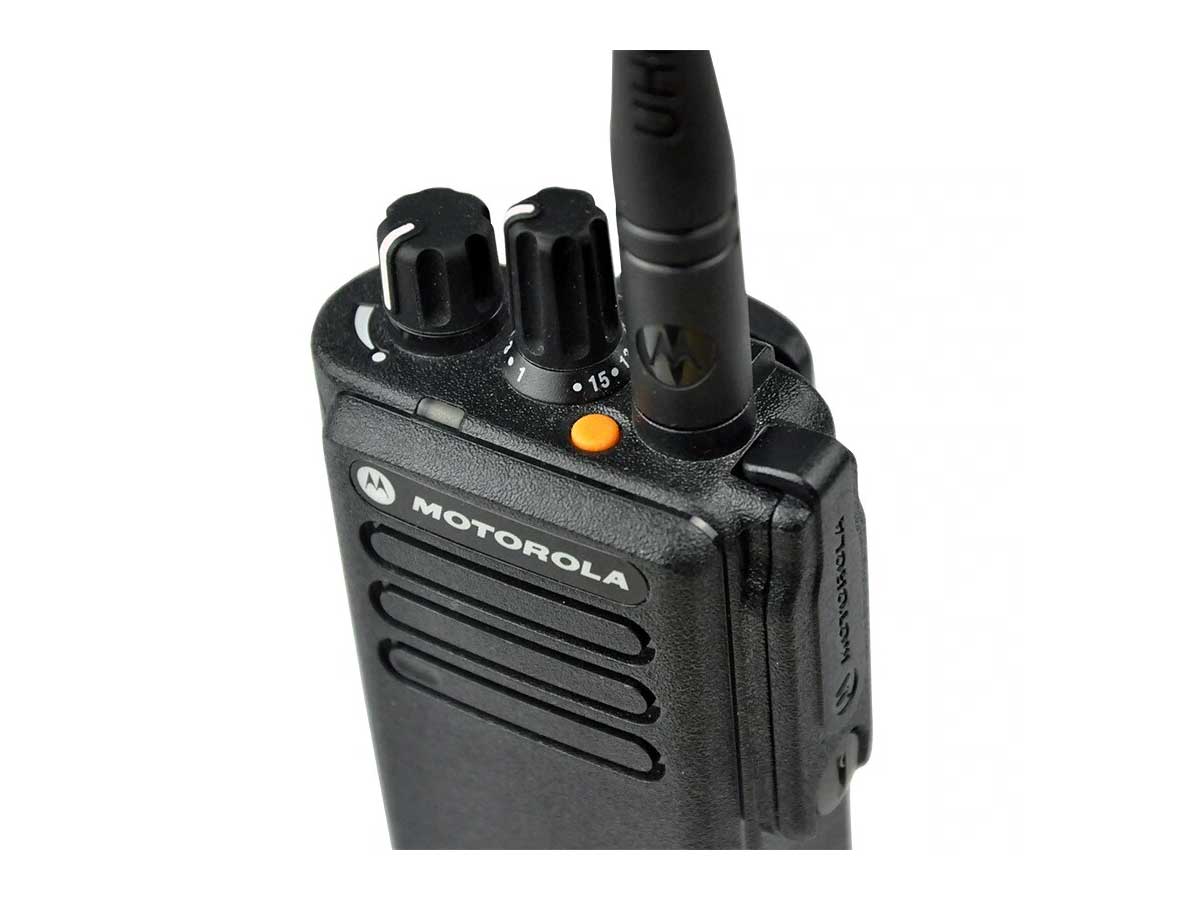

Motorola Volume Channel Knobs Emergency button

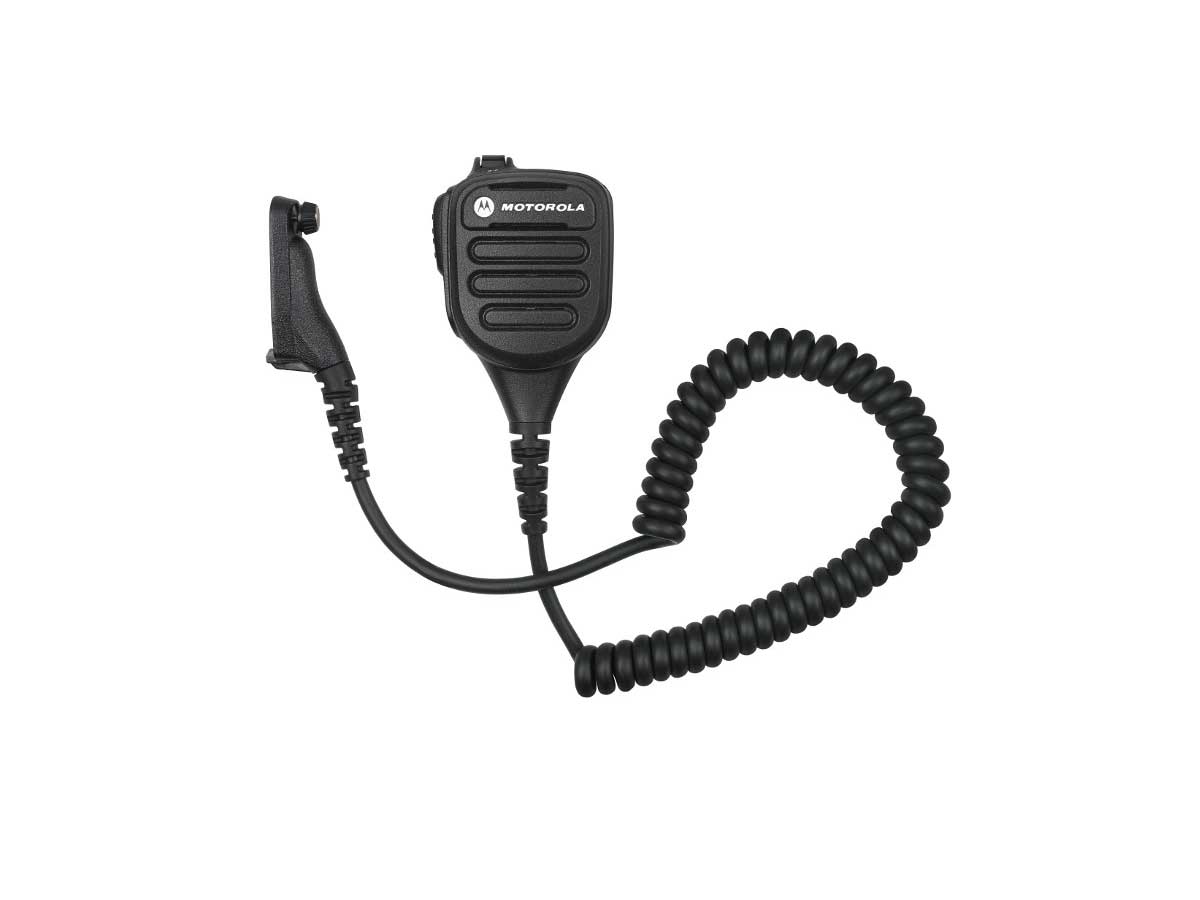

Motorola Remote Speaker Microphone IP68 PMMN4099 PMMN4099B

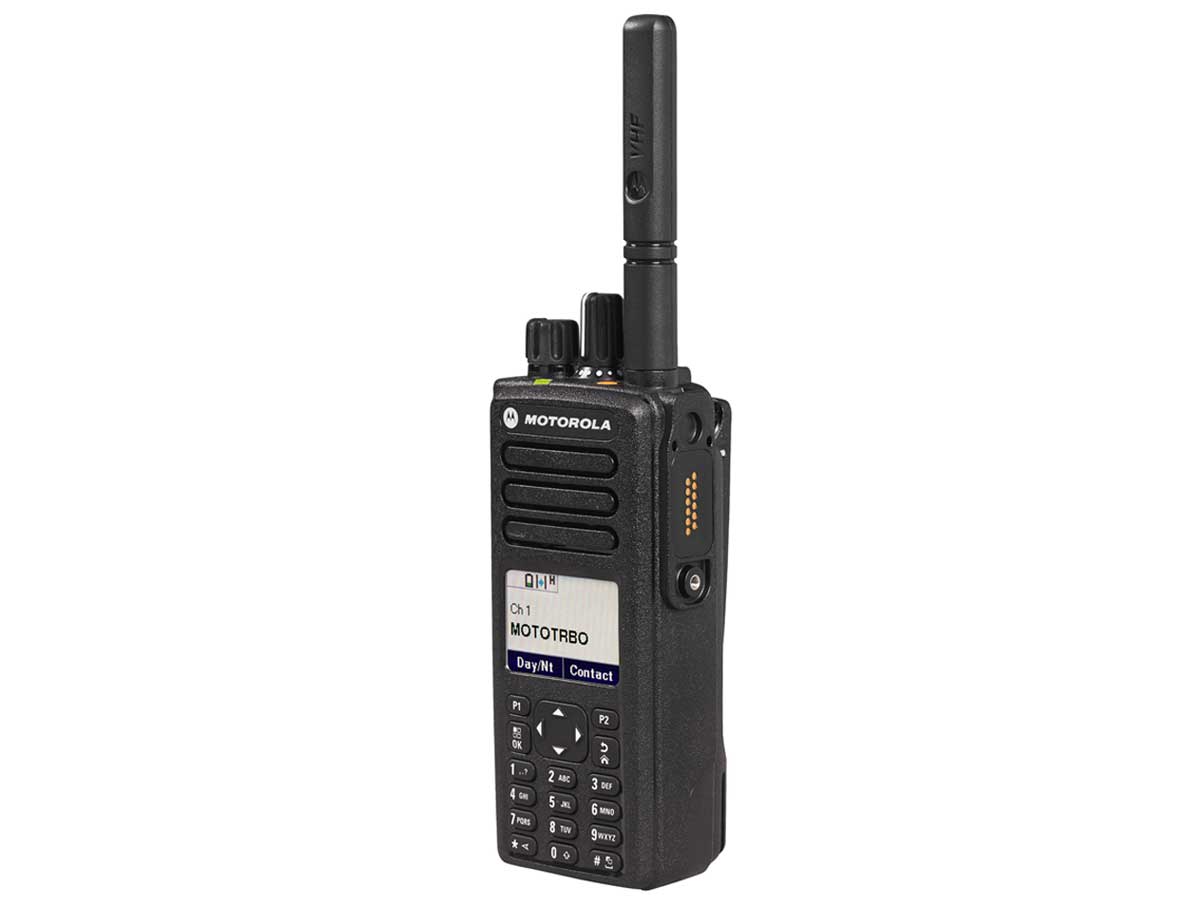

MOTOROLA DP4801e, DP4800e, Two-Way Radios

The Motorola DP4801e (gps) two-way radio is expertly developed, and designed for professional, frontline operations. With exceptional audio clarity, integrated data, and highly developed functionally the DP4801e delivers a comprehensive two-way radio solution for your business, site or project . Instant push to talk communications provides safe and efficient operations for up to 28 hours.

Best in class audio
1000 channels
IP67
UHF / VHF
All-day Battery

“You can’t put a price on a life”

MiningTelecoms Everything Connected integrates multiple networks, two-way radios, smartphones, satellite, fixed wireless broadband.

Learn more about purchasing Motorola Two Way Radios

SKU: DP4800DP4801e-1 Category: Two Way Radios Tags: Childcare, Construction, Contractors, Council, Defence, Emergency, Evacuation, Events, Farming, Health, Hospitals, Industry, Laboratory, Local Government, Medical, Mining, motorola hand held radios, Motorola Portables, motorola two way radios, Oil Gas, Recreation, Recycling, Schools, Security, Sports, Transport, Universities, Utilities, Warehouse

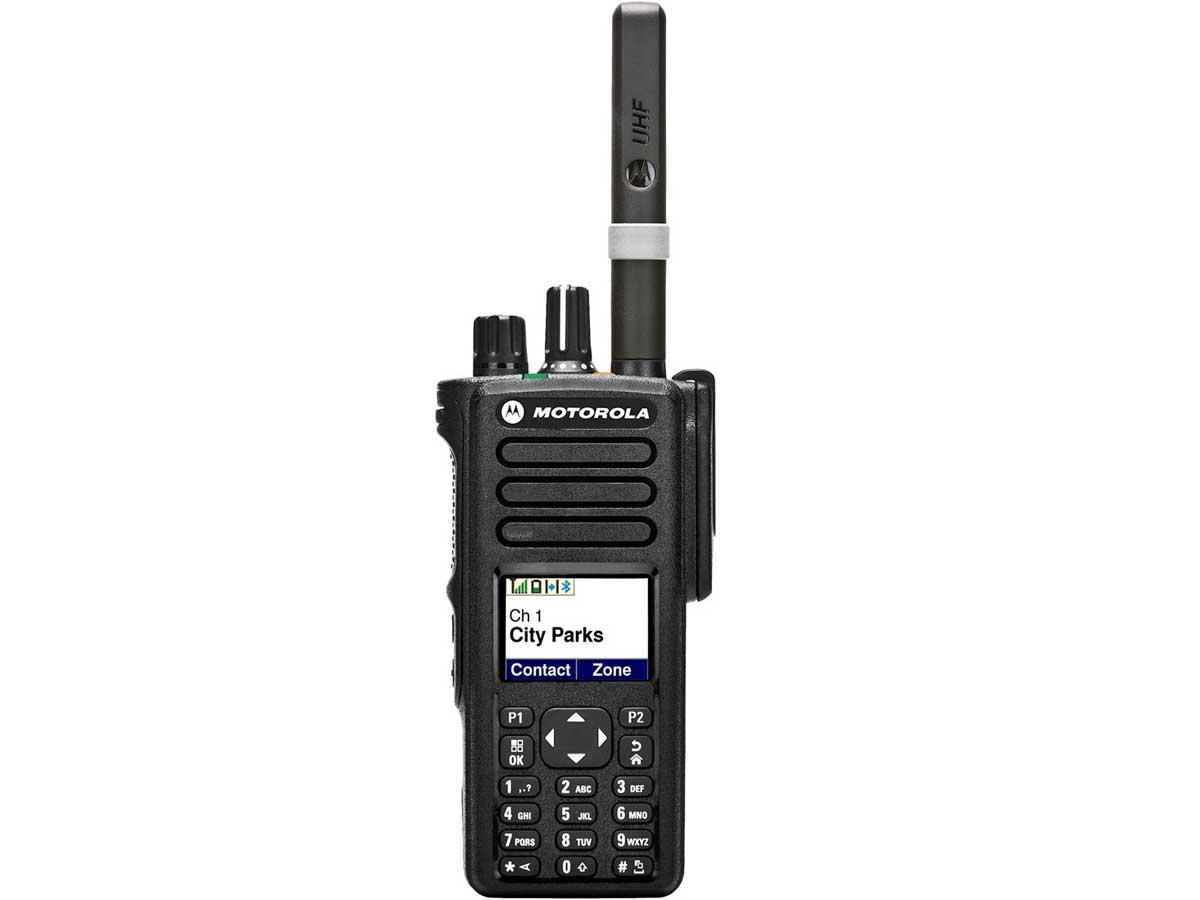

Motorola DP4801e Two-Way Radios

The Motorola DP4801e with GPS provides instant push-to-talk (PTT) in multiple bands – VHF 136-174Mhz or UHF 403-527Mhz with additional features like 1000 channels, voice annunciation, encryption and personalization. This two-way radio is the essential critical communications voice and data site device for instant communications.

Benefits and Features

IP68 Rated – designed to take the knocks

16 keypad with display

Ergonomically designed

Lithium Ion battery supports up to 14 hours

Digital microphones for outstanding audio capture

Advanced antenna technology ensures coverage and comfort

Request a Quote

Motorola XV Remote Speaker Mic

Designed to deliver Xtreme voice clarity. Selectable audio profiles

Standard Capacity Battery 3850mAH

Other Capacity batteries avail as well as intrinsically safe.

IMPRES Multi-Unit Charger

Intelligent charging unit. Allows for up to 6 units at one time.

APX Series 3″ Swivel Belt Loop

Designed for quick access. Constructed of hard durable leather.

Downloads and Resources

Mototrbo DP4600e DP4601e Series Two Way Radios Brochure

MOTOTRBO DP4801e Specifications

DP4800e and DP4801e VHF / UHF bands

XV RSM Datasheet

Motorola RSM

Connected Applications

Security Two-Way Radios, Video Surveillance, Body-Worn Cameras, Recording Systems, and Control Center

Security Control Center Software (CCS) – (Mobile & Base)

MiningTelecoms CCS allows for video management from a mobile phone, control room, or from a screen at home. Flexible site and device monitoring ensure security professionals can operate in different sites, offices, control rooms or from home.

Download Brochure

Open Apps and Load them onto Your Radio

All your favourite apps, email, maps, calendar, reminders, and others. Simply select the Google Play app and select the application you wish to download. You are now fully connected anytime, at work, on the go, or at home.

Google Play Store

Powering telecommunication lifelines

Communications will be a major economic driver in 2021 with advances in 5G/4G two-way PTT networks and applications that will spur innovation to new industries, products, services and job creation.

MiningTelecoms 2021 Connected Communications

Quantities	1-2, 3-5, 6+

Specifications

Additional Specifications

Motorola DP4801e Additional Specifications

FEATURES & BENEFITS	Frequency Bandwidths UHF 450 – 520 MHz VHF, 800 MHz, 900 MHz Power Output 4 to 5 Watts Repeater Capable Battery Life based on mAh Battery life based on a “05/05/ 90 duty cycle” Digital/Analog Battery Life, High Capacity 2250 mAh Battery: DP4800/DP4801 VHF: 22/16.5 hours DP4800/DP4801 UHF: 21/16 hours DP4800/DP4801 800: 21/17.5 hours DP4600/DP4601 VHF: 22/16.5 hours DP4600/DP4601 UHF: 21/16 hours DP4400/DP4401 VHF: 22/16.5 hours DP4400/DP4401 UHF: 21/16 hours DP4401 800: 21/17.5 hours Digital /Analog Battery Life, High Capacity, Low Voltage 3000 mAh Battery: DP4800/DP4801 VHF: 29/22 hours DP4800/DP4801 UHF: 28/21.5 hours DP4800/DP4801 800: 28/23 hours DP4600/DP4601 VHF: 29/22 hours DP4600/DP4601 UHF: 28/21.5 hours DP4400/DP4401 VHF: 29/22 hours DP4400/DP4401 UHF: 28/21.5 hours DP4401 800: 28/23 hours Standard battery chemistry type Lithium Ion – 1 Watt Standard Radio Features and Buttons Option board Red Emergency button Full Colour Display Weight (with standard battery) DP4800e and DP4801e : 347 g DP4600e and DP4601e : 347 g DP4400e and DP4401e : 322 g DP4801e Portable Dimensions H x W x D (with standard battery) DP4800e and DP4801e : 130 x 55 x 36 mm DP4600e and DP4601e : 130 x 55 x 36 mm DP4400e and DP4401e: 130 x 55 x 34 mm Including Radio Specifications Enhanced privacy Transmit interrupt Digital private line Private line Monitor Permanent (Sticky) Monitor Lone worker GPS capable Voice announcement Signalling MDC (Encode/Decode) Quik-Call II (Encode/Decode) Intelligent audio Bluetooth Integrated Bluetooth audio Integrated Bluetooth data Programmable buttons Voice operated transmit (VOX) Time out timer Talk around Text messaging capable Scan types Normal Priority Dual priority Nuisance channel delete Radio Talk Groups All group Radio Talk Types Home revert Phonebook Group Call One to one calling Missed call alerts Customer Programming Software Channel spacing – 12.5, 25 Number of Available Channels DP4800e & DP4801e – 1000 channels DP4600e & DP4601e – 1000 channels DP4400e & DP4401e – 32 channels Channel Selectors Channel scan Calling Caller ID Call tones Call forward Busy channel lockout Integrated voice and data Technology System type Integrated voice and data System Type Conventional IP Site Connect Capacity Plus Connect Plus Trunking Digital technology Use Cases Submersible Factory Mutual Intrinsically safe Mil spec 810 C, 810 D, 810 E, 810 F, 810 G Intrinsically safe Noise reduction software IP Standards IP57 Warranty Period – Motorola & MiningTelecoms Standard warranty – 2 years For additional warranty periods ask your MTA representative

FEATURES & BENEFITS

Frequency Bandwidths

UHF 450 – 520 MHz
VHF, 800 MHz, 900 MHz

Power Output

4 to 5 Watts
Repeater Capable

Battery Life based on mAh

Battery life based on a “05/05/ 90 duty cycle”

Digital/Analog Battery Life, High Capacity 2250 mAh Battery:
- DP4800/DP4801 VHF: 22/16.5 hours
- DP4800/DP4801 UHF: 21/16 hours
- DP4800/DP4801 800: 21/17.5 hours
- DP4600/DP4601 VHF: 22/16.5 hours
- DP4600/DP4601 UHF: 21/16 hours
- DP4400/DP4401 VHF: 22/16.5 hours
- DP4400/DP4401 UHF: 21/16 hours
- DP4401 800: 21/17.5 hours
Digital /Analog Battery Life, High Capacity, Low Voltage 3000 mAh Battery:
- DP4800/DP4801 VHF: 29/22 hours
- DP4800/DP4801 UHF: 28/21.5 hours
- DP4800/DP4801 800: 28/23 hours
- DP4600/DP4601 VHF: 29/22 hours
- DP4600/DP4601 UHF: 28/21.5 hours
- DP4400/DP4401 VHF: 29/22 hours
- DP4400/DP4401 UHF: 28/21.5 hours
- DP4401 800: 28/23 hours

Standard battery chemistry type

Lithium Ion – 1 Watt

Standard Radio Features and Buttons

Option board
Red Emergency button
Full Colour Display
Weight (with standard battery)
- DP4800e and DP4801e : 347 g
- DP4600e and DP4601e : 347 g
- DP4400e and DP4401e : 322 g

DP4801e Portable Dimensions H x W x D (with standard battery)

DP4800e and DP4801e : 130 x 55 x 36 mm
DP4600e and DP4601e : 130 x 55 x 36 mm
DP4400e and DP4401e: 130 x 55 x 34 mm

Including Radio Specifications

- Enhanced privacy
- Transmit interrupt
- Digital private line
- Private line
- Monitor Permanent (Sticky) Monitor
- Lone worker
- GPS capable
- Voice announcement
- Signalling
- MDC (Encode/Decode)
- Quik-Call II (Encode/Decode)
- Intelligent audio
- Bluetooth
- Integrated Bluetooth audio
- Integrated Bluetooth data
- Programmable buttons
- Voice operated transmit (VOX)
- Time out timer
- Talk around
- Text messaging capable
- Scan types
  - Normal
  - Priority
  - Dual priority
  - Nuisance channel delete
  Radio Talk Groups
  - - All group
    Radio Talk Types
    - Home revert
    - Phonebook
    - Group Call
    - One to one calling
    - Missed call alerts
    - Customer Programming Software
    - Channel spacing – 12.5, 25
    Number of Available Channels
    - DP4800e & DP4801e – 1000 channels
    - DP4600e & DP4601e – 1000 channels
    - DP4400e & DP4401e – 32 channels
    Channel Selectors
    - Channel scan
    Calling
    - Caller ID
    - Call tones
    - Call forward
    - Busy channel lockout
    - Integrated voice and data
    - Technology
    - System type
    - Integrated voice and data
    System Type
  - Conventional
  - IP Site Connect
  - Capacity Plus
  - Connect Plus Trunking
  - Digital technology
  Use Cases
- Submersible
- Factory Mutual
- Intrinsically safe
- Mil spec 810 C, 810 D, 810 E, 810 F, 810 G
- Intrinsically safe
- Noise reduction software
- IP Standards
- IP57

Warranty Period – Motorola & MiningTelecoms

- Standard warranty – 2 years
- For additional warranty periods ask your MTA representative
