Motorola R5 Digital Two-Way Radio
Loud. Clear. Built to Last.
Motorola R5 Portable Radio – Clear Audio in a Compact, Rugged Design
The Motorola R5 is a compact professional MOTOTRBO™ digital two-way radio designed for teams working in noisy, physically demanding environments. Powerful audio, intelligent noise suppression and intuitive controls help workers communicate clearly across mining, construction, manufacturing, transport, security and commercial operations.
- SINC+ and AI-trained noise suppression
- Loud adjustable audio
- Rugged IP67 dust and water protection
- Limited-keypad display and non-keypad models
- VHF 136–174 MHz and UHF 400–527 MHz options
- Analogue and MOTOTRBO digital operation
- Conventional, IP Site Connect and Capacity Plus compatible
- Up to 32 hours of digital battery operation
- Professionally programmed and supported in Australia
We don’t just sell radios—we deliver commercial communication lifelines.
Motorola R5: Loud, Clear Audio for Demanding Workplaces
The Motorola R5 is designed for organisations that need reliable, immediate communication without the size and complexity of a full-keypad radio. Its compact form, powerful speaker and intuitive controls make it well suited to mining, construction, manufacturing, transport, security and commercial operations.
SINC+ single-microphone noise cancellation and AI-trained noise suppression help distinguish the user’s voice from machinery, vehicles, crowds and other background noise. Received Audio Levelling and Intelligent Audio in digital mode also help maintain consistent, audible communications as workplace conditions change.
Available in UHF and VHF configurations, the R5 supports analogue and MOTOTRBO digital operation. It can operate across conventional, IP Site Connect and Capacity Plus single-site or multi-site networks, making it suitable for individual worksites and connected radio systems.
MiningTelecoms supplies and professionally programs Motorola R5 radios for Australian organisations. Each fleet can be configured around the customer’s frequencies, channels, talkgroups, scan requirements, emergency procedures and operating environment.
Motorola R5 Benefits and Features
Clear Status Display
The limited-keypad R5 features a clear 1.5-inch monochrome display for viewing channels, radio status and important operating information.
Designed for Easy Operation

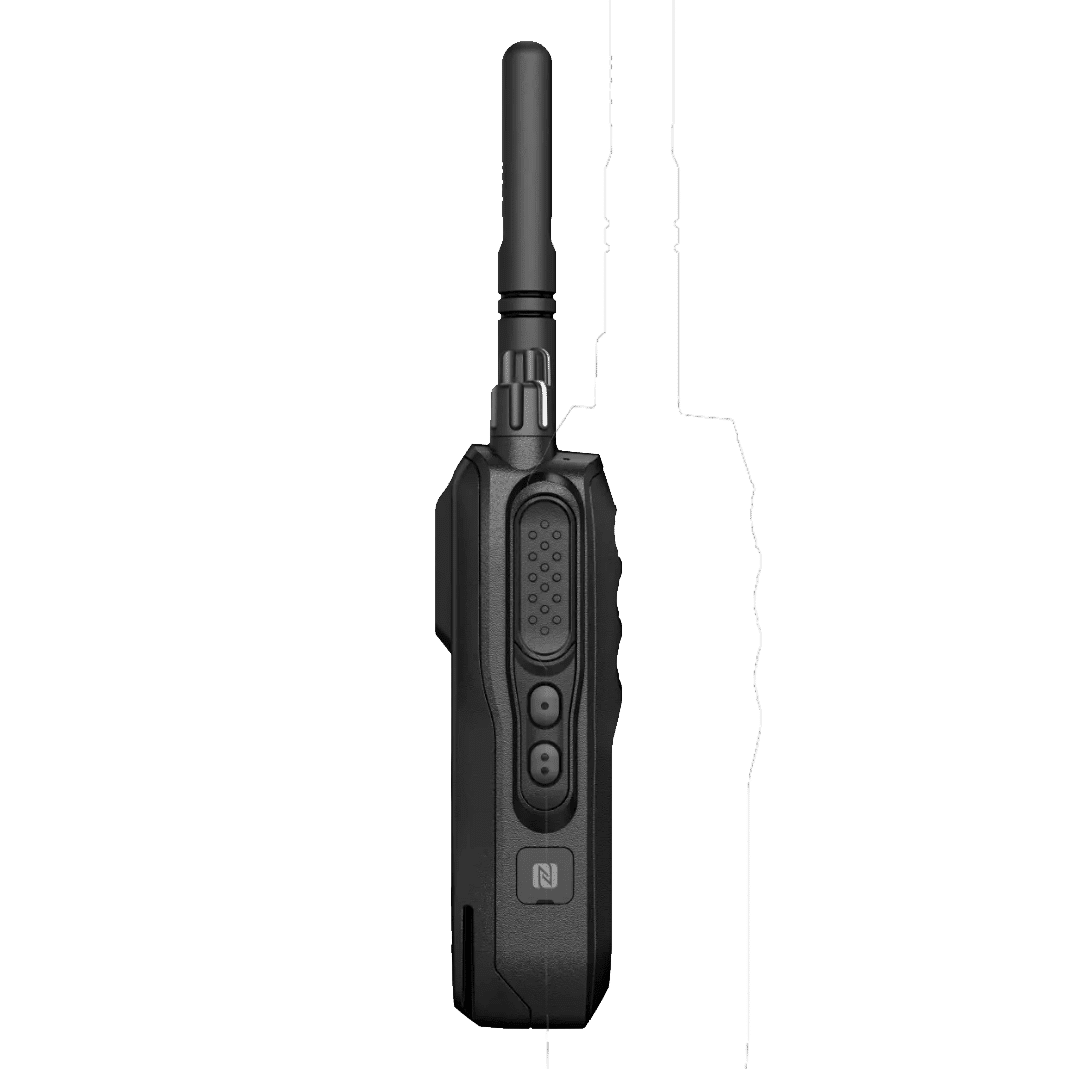

Large control knobs, a tactile push-to-talk button and programmable controls make the R5 easy to operate, including when users are wearing gloves.
Long-Shift Battery Performance
Motorola IMPRES™ battery options provide up to 32 hours of digital operation, depending on the battery, frequency band, radio configuration and usage.
Advanced Noise Cancellation
SINC+ and AI-trained noise suppression reduce disruptive background sound so transmitted speech remains clearer around machinery, vehicles and crowds.
Rugged IP67 Protection
The R5 is dust-tight, waterproof and tested to MIL-STD-810H for demanding environmental conditions including shock, vibration, temperature changes and humidity.
UHF and VHF Flexibility
VHF 136–174 MHz and UHF 400–527 MHz models support analogue and MOTOTRBO digital operation across compatible licensed radio networks.
Scalable MOTOTRBO Operation
The R5 supports conventional operation, IP Site Connect and Capacity Plus single-site and multi-site networks for scalable DMR Tier II communications.
Why the Motorola R5 Excels in High-Noise Environments
Missed or misunderstood radio calls can create delays, repeated instructions and serious safety risks. The Motorola R5 combines powerful audio with advanced noise suppression to help workers communicate clearly around machinery, vehicles, crowds and other sources of background noise.
SINC+ and AI-Trained Noise Suppression
The R5 uses SINC+ single-microphone noise cancellation and AI-trained processing to distinguish speech from disruptive background sound. This helps users transmit clearer messages from processing plants, workshops, loading areas, construction sites and other noisy workplaces.
Automatic Acoustic Feedback Suppression
When radios operate close together, acoustic feedback can create an uncomfortable and distracting squeal. The R5 automatically suppresses this feedback in digital mode, helping teams communicate more effectively in vehicles, control rooms, meeting points and crowded work areas.
Intelligent Audio and Received Audio Levelling
Intelligent Audio adjusts the R5’s speaker output as surrounding noise changes, while Received Audio Levelling helps balance differences in incoming voice volume. Together, these functions reduce constant manual adjustment and help users hear calls more consistently.
Built for Demanding Australian Worksites
The Motorola R5 is designed for dependable everyday operation across harsh industrial, commercial and outdoor environments. Its compact, rugged housing helps protect the radio against dust, water, vibration, temperature changes and the impacts encountered during demanding shifts.
Its IP67 rating means the R5 is dust-tight and protected against temporary water immersion under specified test conditions. This makes it suitable for exposed worksites, outdoor operations and workplaces where radios may encounter rain, dirt or accidental contact with water.
The R5 is tested to MIL-STD-810H for environmental conditions including shock, vibration, temperature extremes, humidity, rain, dust and salt fog. A robust side accessory connector is designed to support dependable use with compatible audio accessories.
For organisations operating across mining, construction, manufacturing, transport, security and infrastructure, this durability helps reduce equipment downtime and provides workers with a compact radio designed for demanding daily use.
Motorola R5 Durability
- IP67 dust-tight and water protection
- Rugged to MIL-STD-810H
- Shock and vibration tested
- Resistant to humidity and temperature extremes
- Rain and blowing-dust testing
- Salt-fog testing

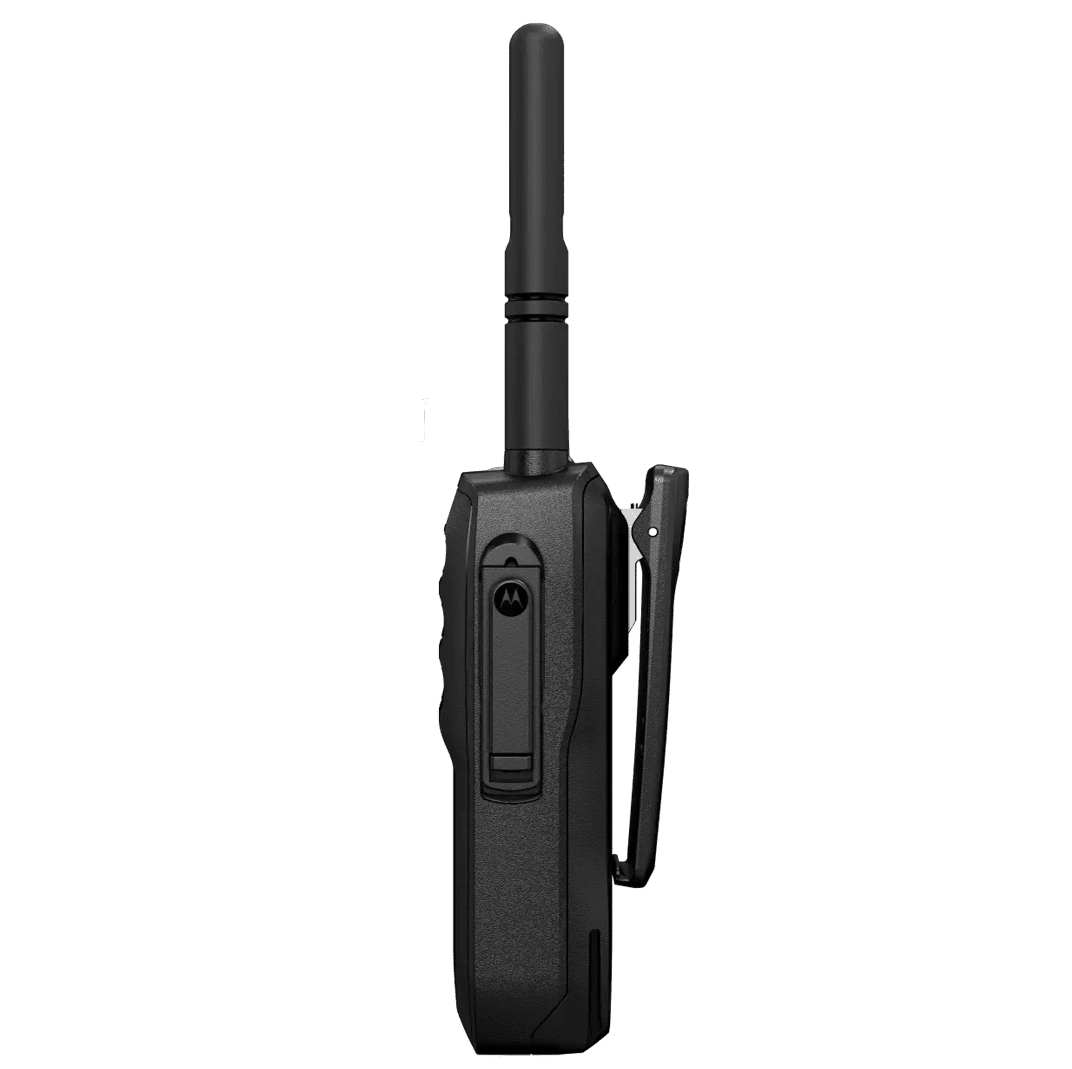

- Robust side accessory connector
- Radio operating range from −30°C to +60°C
- Battery operating minimum of −20°C
Connected and Scalable MOTOTRBO Communications
The Motorola R5 can operate as part of anything from a straightforward on-site radio fleet to a connected multi-site MOTOTRBO network. Its voice, data and fleet-management capabilities help organisations expand coverage, manage radio configurations and support consistent communication across operational teams.
Analogue and Digital Operation
The R5 supports analogue and MOTOTRBO digital operation, allowing organisations to introduce new radios while maintaining compatibility with an existing analogue fleet. Users can then transition to digital communications at a practical pace.
Conventional, IP Site Connect and Capacity Plus
The Motorola R5 supports conventional radio operation, IP Site Connect and Capacity Plus single-site and multi-site systems. This makes it suitable for individual worksites, linked locations and DMR Tier II networks requiring additional channels and capacity.
Radio Management and Over-the-Air Programming
The R5 supports Motorola CPS 2.0, Radio Management and over-the-air programming through a compatible DMR network. These capabilities can simplify fleet configuration and reduce the need to physically collect every radio when authorised programming changes are required.
Voice, Data and Safety Integration
Depending on the model and system configuration, the R5 supports voice and data operation, canned text messaging, digital emergency signalling, Transmit Interrupt, Remote Monitor and Radio Disable or Enable. These capabilities can support more organised communications and site-specific emergency workflows.
MiningTelecoms can design, program and integrate Motorola R5 radios into new or existing MOTOTRBO infrastructure, including conventional systems, repeaters, IP Site Connect and Capacity Plus networks.
Motorola R5 Worker-Safety Features
Reliable communication becomes critical when a worker needs assistance, misses a scheduled response or experiences an emergency. When appropriately programmed and supported by the radio system, the Motorola R5 provides safety and control functions that can help organisations establish faster, more consistent emergency-response procedures.

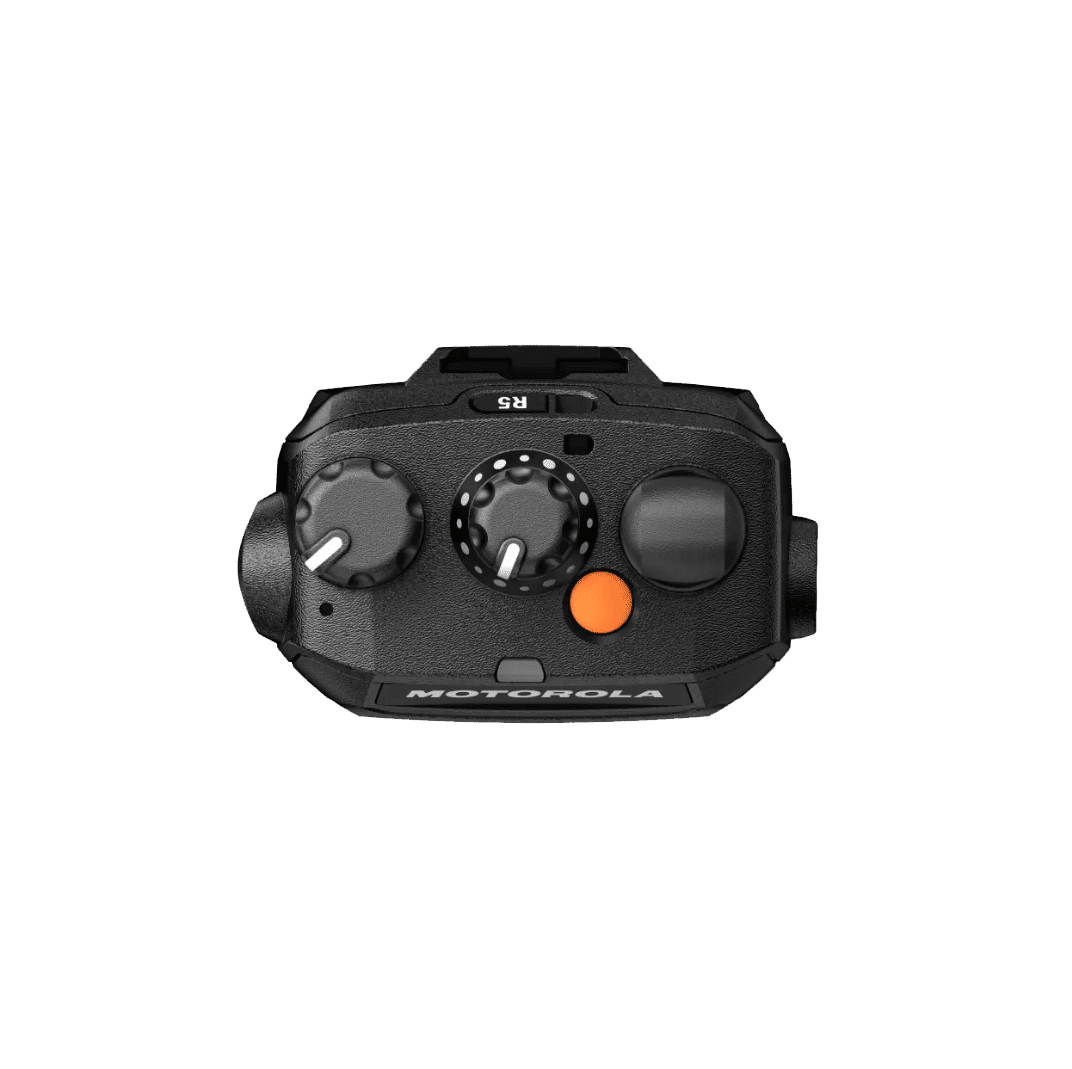

Dedicated Emergency Button
The prominent orange emergency button can be programmed to initiate a site-specific emergency sequence. Depending on the radio-system design, this may alert other radios, notify a control point, open the microphone or move the user to a designated emergency channel or talkgroup.
Lone Worker Monitoring
Lone Worker can require the radio user to provide confirmation at programmed intervals. If the user does not respond, the R5 can generate an alert according to the organisation’s configured escalation procedure.
Digital Emergency and Transmit Interrupt
Digital emergency signalling can identify the radio initiating an alert and communicate the emergency across a compatible MOTOTRBO system. Transmit Interrupt can allow appropriately authorised high-priority communication to interrupt an ongoing transmission when urgent access to the channel is required.
Remote Radio Control
Remote Monitor can support authorised incident assessment according to the system configuration. Radio Disable and Enable functions can also help administrators manage lost, misplaced or unauthorised radios across a compatible MOTOTRBO network.
Configurable Safety and Control Functions
- Dedicated emergency button
- Digital emergency signalling
- Lone Worker monitoring
- Emergency search tone
- Transmit Interrupt
- Remote Monitor
- Radio Disable and Enable
- Basic and Enhanced Privacy
- Secure processor
- Site-specific emergency programming
Radio safety functions must be correctly programmed, tested and incorporated into an organisation’s documented emergency procedures. Feature availability depends on the selected R5 model, software options and radio-system configuration. MiningTelecoms can configure and test emergency workflows around your site requirements.
Motorola R5 Applications Across Australian Industries
The Motorola R5 is suited to organisations requiring dependable voice communication in noisy, physically demanding and operationally complex workplaces. MiningTelecoms can configure each R5 fleet around the site’s frequencies, channels, user groups, safety procedures and MOTOTRBO infrastructure.
Mining and Resources
Powerful audio and advanced noise suppression help workers communicate around processing plants, workshops, mobile equipment and surface-mining operations. The R5 can integrate with conventional, IP Site Connect and Capacity Plus mining radio networks..
Construction
Rugged IP67 protection, intuitive controls and clear audio make the R5 suitable for supervisors, crane crews, traffic controllers, safety personnel and contractors working across active construction sites.
Manufacturing and Processing
The R5 helps teams communicate around machinery, production lines and material-handling equipment. SINC+, AI-trained noise suppression and Intelligent Audio support clearer communication across changing noise environments.
Transport and Logistics
Warehouses, distribution centres, ports, airports and transport yards can use the R5 to coordinate loading, dispatch, security, vehicle movements and operational teams across large sites.
Security and Large Facilities
Limited-keypad models provide a clear status display, up to 256 channels and canned text messaging for security teams, hospitals, campuses and commercial facilities requiring organised channels and emergency functionality.
Utilities and Infrastructure
The R5 supports field crews working across energy, water, telecommunications, maintenance and public infrastructure where ruggedness, reliable communication, Lone Worker and emergency functions are important.
Organisations operating in formally classified explosive atmospheres may require appropriately IECEx or ATEX-certified radio equipment. The optional TIA-4950 R5 configuration should not be assumed to meet an Australian site’s IECEx or ATEX requirements. MiningTelecoms can assist with radio selection based on the site classification, operating environment and communications system.
Motorola R5 Frequently Asked Questions
The following answers cover common questions about Motorola R5 models, frequencies, battery performance, MOTOTRBO compatibility, hazardous-location options and professional programming.
Is the Motorola R5 available in UHF and VHF?
Yes. The Motorola R5 is available in VHF 136–174 MHz and UHF 400–527 MHz configurations. Selection should be based on your licensed frequencies, existing radio fleet, coverage environment and radio-system design. MiningTelecoms can confirm the correct frequency band and antenna for your operation.
What is the difference between the R5 limited-keypad and non-keypad models?
The limited-keypad R5 has a 1.5-inch monochrome display, supports up to 256 channels across 50 zones and provides additional programmable controls. The non-keypad R5 has no display, supports up to 64 channels across four zones and is designed for straightforward, task-focused voice communication.
Can the Motorola R5 operate in analogue mode?
Yes. The R5 supports analogue and MOTOTRBO digital operation. This allows organisations to introduce R5 radios into a compatible analogue fleet and transition to digital communications at a practical pace. Compatibility depends on correct programming and authorised frequencies.
Does the R5 support Capacity Plus and Capacity Max?
The Motorola R5 supports conventional operation, IP Site Connect, Dual Capacity Direct Mode and Capacity Plus single-site and multi-site systems. It does not support Capacity Max DMR Tier III. Organisations requiring Capacity Max should consider a compatible radio such as the Motorola R7.
How long does the Motorola R5 battery last?
Runtime depends on battery capacity, frequency band, transmit power, programmed features and radio usage. Under Motorola’s specified test conditions, the 3200mAh IMPRES battery provides up to approximately 32 hours of digital operation on VHF or 30 hours on UHF. The slim 2200mAh battery provides up to approximately 21.5 hours on VHF or 20 hours on UHF. Actual operating time will vary.
Is the Motorola R5 waterproof and suitable for harsh worksites?
The R5 is rated IP67 for dust and water protection and is rugged to MIL-STD-810H. It is designed for demanding industrial and outdoor workplaces where radios may encounter dust, rain, vibration, temperature changes and everyday impacts. Protection depends on the radio being correctly assembled and used with compatible approved accessories.
Is the Motorola R5 intrinsically safe?
The R5 is available in an ANSI TIA-4950 hazardous-location configuration when correctly equipped with an approved Motorola battery. This is not equivalent to IECEx or ATEX certification. Radio selection must reflect the site’s formal hazardous-area classification and applicable Australian requirements.
What is the difference between the Motorola R5 and R7?
The R5 is a compact DMR Tier II radio available in limited-keypad and non-keypad versions, with IP67 protection and support for conventional, IP Site Connect and Capacity Plus networks. The R7 provides a larger colour-display option, more advanced connectivity, IP66/IP68 protection and support for Capacity Max DMR Tier III. The correct model depends on the required network, features, user interface and operating environment.
Can MiningTelecoms program the R5 before delivery?
Yes. MiningTelecoms can supply R5 radios professionally programmed with the required frequencies, channels, zones, colour codes, timeslots, talkgroups, scan lists, receive groups, button assignments and authorised privacy settings. Emergency, Lone Worker and compatible fleet-management functions can also be configured according to the radio and system requirements.
How much does a Motorola R5 cost?
Motorola R5 pricing depends on the frequency band, limited-keypad or non-keypad model, standard or TIA-4950 configuration, battery, charger, antenna, software features and accessories selected. Contact MiningTelecoms for a configuration-specific quotation based on your fleet size and operational requirements.
Need Motorola R5 Radios Configured for Your Operation?
MiningTelecoms supplies and professionally programs Motorola R5 radios for mining, construction, industrial and commercial organisations across Australia. We can help select the correct R5 model, frequency band, battery, accessories and MOTOTRBO configuration for your workplace.
Whether you require several replacement radios or a complete multi-site fleet, your R5 radios can arrive programmed, labelled and ready for deployment.
Which Motorola R5 Model Is Right for Your Operation?
The Motorola R5 is available in limited-keypad and non-keypad configurations. Both provide the R5’s powerful audio, rugged IP67 construction and analogue/digital capability, but they differ in display, channel capacity and how users interact with the radio.

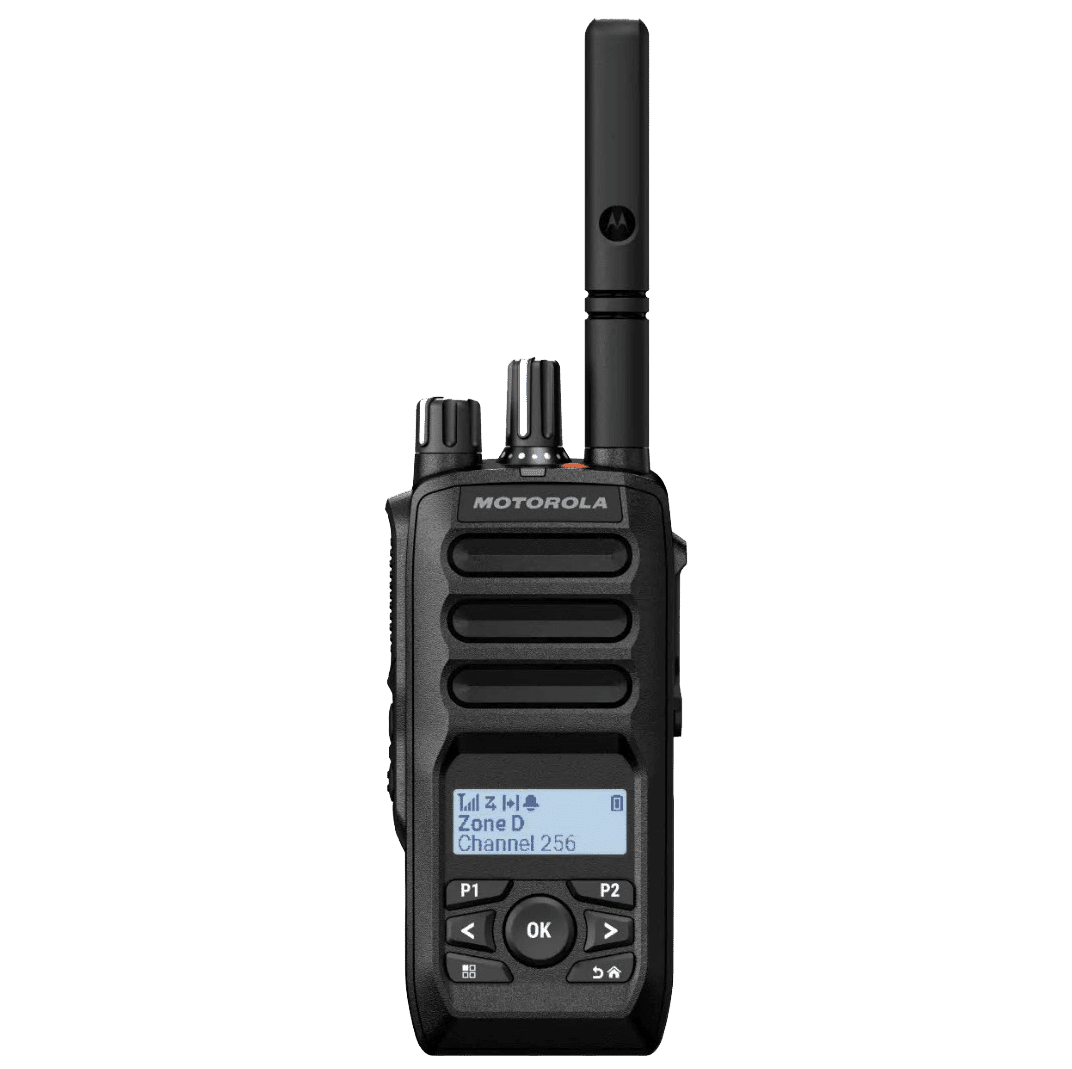

Motorola R5 Limited-Keypad
The limited-keypad R5 is designed for organisations requiring visual status information, more channels and greater access to radio functions.
- Limited keypad and navigation controls
- 1.5-inch, 132 × 48-pixel monochrome display
- Up to 256 channels
- Up to 50 zones
- Five programmable buttons, including the emergency button
- Voice and data capability
- Canned text messaging
- Suitable for larger or more complex channel structures
- Ideal for supervisors and users requiring visual radio information

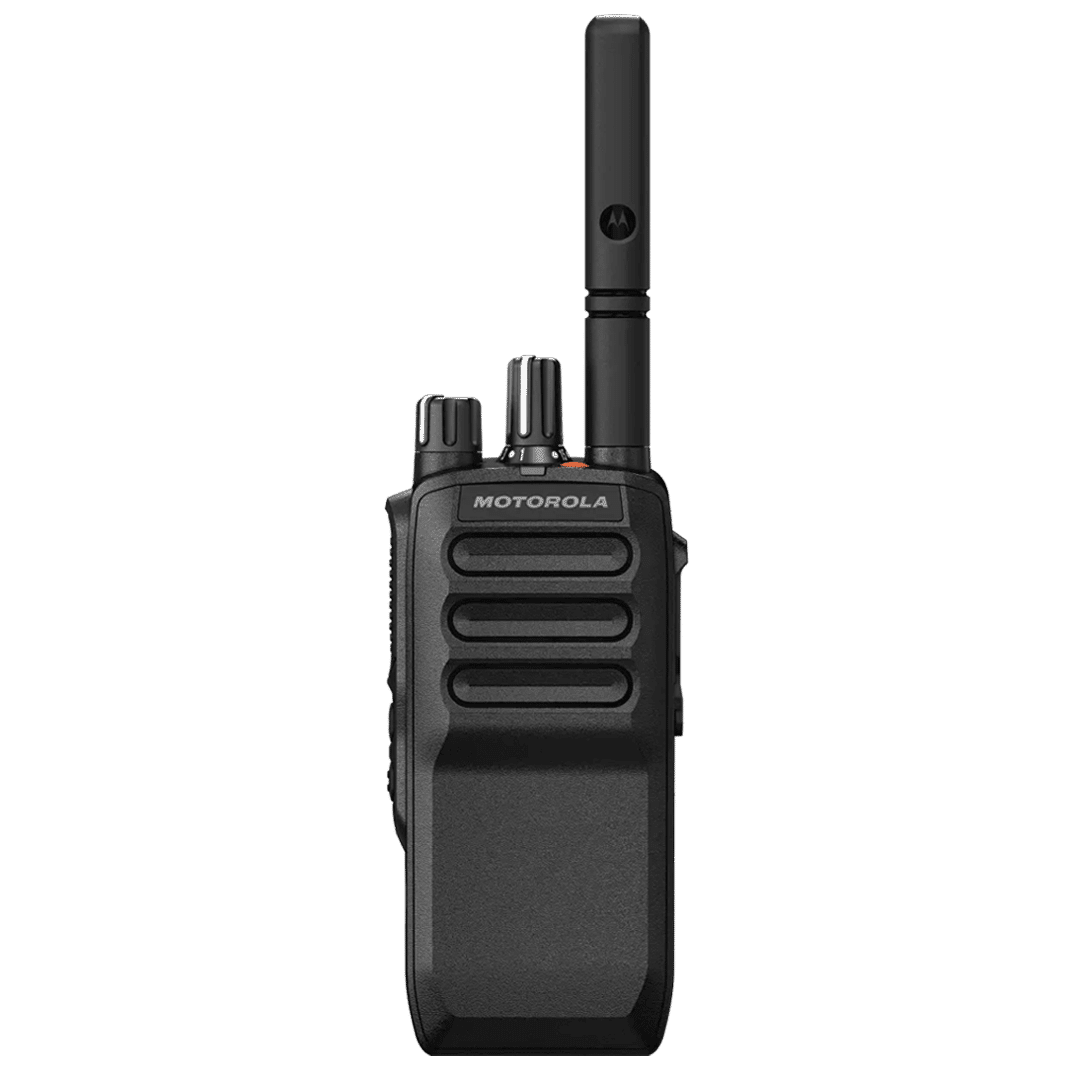

Motorola R5 Non-Keypad
The non-keypad R5 provides straightforward, task-focused communication for users who do not require a screen or menu navigation.
- No display or keypad
- Up to 64 channels
- Up to four zones
- Three programmable buttons, including the emergency button
- Voice-announcement capability
- Analogue and MOTOTRBO digital operation
- Canned text-message sending where appropriately configured
- Simple channel and volume controls
- Ideal for operational users requiring fast, uncomplicated communication
Both R5 models are available in VHF and UHF configurations and support conventional, IP Site Connect and Capacity Plus operation. Model features can depend on purchased software options and the radio-system configuration.
MiningTelecoms can identify the appropriate R5 model, frequency band, battery and feature package for each user group, helping organisations avoid unnecessary complexity while meeting operational and safety requirements.
Configure Your Motorola R5
The Motorola R5 is available in multiple model, frequency, battery and software configurations. MiningTelecoms can identify the correct combination for your workplace, existing radio fleet and MOTOTRBO system, ensuring each radio arrives professionally programmed and ready for deployment.
1. Select the R5 Model
Choose the user interface that best matches each role:
- Limited-keypad: 1.5-inch display, up to 256 channels and 50 zones
- Non-keypad: No display, up to 64 channels and four zones
Different models can be deployed within the same compatible fleet where supervisors and operational users have different requirements.
2. Choose the Frequency Band
- VHF 136–174 MHz: Often selected for open terrain and existing VHF radio networks
- UHF 400–527 MHz: Commonly used across buildings, industrial sites, construction and mining operations
The radio and antenna must match the organisation’s licensed frequencies and existing system.
Not sure which R5 configuration to order? Provide MiningTelecoms with your existing radio model, frequencies, radio-system type, operating environment and required quantity. We can recommend the appropriate R5 model, battery, antenna, charger, audio accessories and programming.
3. Select Standard or TIA-4950 HazLoc
The R5 is available in standard industrial and ANSI TIA-4950 hazardous-location configurations. The certified configuration must use the complete approved radio, battery and accessory combination.
TIA-4950 certification is not equivalent to IECEx or ATEX. Operations in formally classified explosive atmospheres must select equipment that satisfies the site classification and applicable Australian requirements.
4. Define System and Feature Requirements
Depending on the radio model and network, configuration requirements may include:
- Analogue or MOTOTRBO digital operation
- Conventional, IP Site Connect or Capacity Plus
- Channels, zones, talkgroups and scan lists
- Emergency-button operation and Lone Worker
- Digital emergency and Transmit Interrupt
- Basic or Enhanced Privacy
- Canned text messaging
- Radio Management and DMR over-the-air programming
- Optional NFC or RFID tags for supported workflows
Motorola R5 Technical Specifications
The Motorola R5 combines loud, clear audio, compact construction and flexible MOTOTRBO functionality in a portable radio designed for demanding professional environments. Specifications vary according to the selected frequency band, limited-keypad or non-keypad model, battery and enabled software features.
| Specification | Motorola R5 |
|---|---|
| Frequency bands | VHF: 136–174 MHz; UHF: 400–527 MHz |
| RF output power | Up to 5 W VHF; up to 4 W UHF; 1 W low power |
| Model options | Limited-keypad and non-keypad |
| Channel capacity | Limited-keypad: up to 256 channels; non-keypad: up to 64 channels |
| Zone capacity | Limited-keypad: up to 50 zones; non-keypad: up to four zones |
| Channel spacing | 12.5 kHz, 20 kHz and 25 kHz |
| Operating modes | Analogue and MOTOTRBO digital |
| Digital protocol | ETSI TS 102 361-1, -2 and -3; DMR Tier II |
| Display | Limited-keypad: 1.5-inch, 132 × 48-pixel monochrome display; non-keypad: no display |
| Audio output | 1 W rated; up to 3 W maximum |
| Maximum programmable loudness | Up to 106 phon at 30 cm in digital mode |
| Noise management | SINC+ single-microphone noise cancellation, AI-trained noise suppression, Intelligent Audio, Received Audio Levelling and automatic acoustic-feedback suppression |
| Radio systems | Conventional, Dual Capacity Direct Mode, IP Site Connect and Capacity Plus single-site or multi-site |
| Fleet management | CPS 2.0, Radio Management and DMR over-the-air programming |
| Water and dust protection | IP67 |
| Ruggedness | Tested to MIL-STD-810H |
| Radio operating temperature | −30°C to +60°C |
| Battery operating temperature | Minimum −20°C |
| Dimensions with 2200 mAh battery | 122 × 56 × 35 mm |
| Weight with 2200 mAh battery | Limited-keypad: approximately 285 g; non-keypad: approximately 269 g |
| Dimensions with 3200 mAh battery | 122 × 56 × 41 mm |
| Maximum digital battery runtime | Up to 32 hours VHF or 30 hours UHF with the 3200 mAh battery |
| Battery technology | Motorola IMPRES™ lithium-ion battery options |
| Safety functions | Emergency button, Lone Worker, digital emergency, emergency search tone, Transmit Interrupt, Remote Monitor and Radio Disable/Enable |
| Privacy and security | Basic Privacy, Enhanced Privacy and secure processor |
| Hazardous-location option | ANSI TIA-4950 configuration when used with the complete approved radio, battery and accessory combination; not equivalent to IECEx or ATEX |
| Service coverage | Five years of hardware repair, technical support and software updates; optional accidental-damage coverage |
| Maritime certification | R5 UHF models are certified to specified EN 300 720 and IEC/EN 60945 requirements for use aboard vessels |
Specifications and features may vary according to the Motorola R5 model, frequency band, battery, regional availability, purchased software options and radio-system configuration. MiningTelecoms can confirm the correct configuration for your operational and safety requirements.
RM560 IMPRES Remote Speaker Microphone — PMMN4170
Designed to deliver instant, clear communications within easy reach.
IMPRES Six-Pocket Multi-Unit Charger, Australia/NZ — PMPN4293
Allows for up to 6 units at one time.
IMPRES High-Capacity Li-ion Battery 3200mAh
Motorola high capacity battery with the following runtimes; digital 30-32 hours, analogue 23-24 hours
IMPRES Single-Unit Charger, Australia/NZ — PMPN4571
Intelligent single bay charging unit with ANZ plug pack
Motorola R5 Battery Options and Operating Times
Motorola IMPRES™ battery technology supports intelligent charging, battery-health information and dependable performance across demanding shifts. Actual runtime depends on the selected battery, frequency band, transmit power, radio configuration and operating pattern.
| Motorola battery | Capacity | Digital runtime: VHF / UHF | Analogue runtime: VHF / UHF |
|---|---|---|---|
| PMNN4888 Slim IMPRES Li-ion | 2200 mAh | 21.5 / 20 hours | 16 / 15.5 hours |
| PMNN4889 IMPRES High-Capacity Li-ion | 3200 mAh | 32 / 30 hours | 24 / 23 hours |
| PMNN4890 UL/TIA Li-ion | 3200 mAh | 32 / 30 hours | 24 / 23 hours |
Battery figures are typical under Motorola’s 5/5/90 test profile at maximum transmitter power. Actual operating time will vary according to radio settings, enabled features, signal conditions and usage. The PMNN4890 UL/TIA4950 battery does not make the standard Motorola R5 equivalent to an IECEx/ATEX-certified intrinsically safe radio.
Motorola R5 Accessories
The Motorola R5 can be configured with genuine Motorola accessories selected around the user’s role, noise environment, shift length and charging requirements. Using compatible audio, power and carrying accessories helps preserve radio functionality, durability and dependable performance.
Remote Speaker Microphones
The RM560 and RM530 IMPRES remote speaker microphones allow users to communicate without removing the radio from a belt or carry case. Available features include intelligent audio, AI-trained noise suppression, programmable controls and IP67 environmental protection.
Earpieces and Headsets
Discrete earpieces, surveillance kits, lightweight headsets and heavy-duty hearing-protection solutions are available for security, industrial, event and high-noise applications. The selected solution should suit the workplace noise level and required hearing protection.
IMPRES Batteries and Chargers
Motorola IMPRES batteries and intelligent charging solutions help organisations manage radio power across individual users and larger fleets. Australian single-unit, six-pocket multi-unit and vehicle-charging options are available.
Carry Cases and Belt Clips
Hard-leather and nylon carry cases are available for display and non-display R5 models. Fixed, swivel and belt-clip options allow the radio to be carried securely while remaining accessible during operation.
Antennas
Motorola-approved UHF and VHF antennas are available for the supported R5 frequency bands. The antenna must be matched to the radio’s frequency configuration to maintain reliable performance.
Programming and Identification Accessories
USB programming cables, NFC identification kits and RFID options are available to support fleet configuration, asset identification and radio management.
MiningTelecoms can supply the Motorola R5 as a complete operational package, including compatible batteries, chargers, audio accessories, antennas, carry solutions and professional programming.
The figures and part numbers above align with Motorola’s current R5 Accessories brochure and Australian/New Zealand R5 datasheet
Motorola R5 Documents and Downloads
Access official Motorola R5 product information, specifications, operating instructions and compatible accessory options. Contact MiningTelecoms if you need assistance selecting or configuring an R5 radio fleet.
Can’t find the information you need? MiningTelecoms can assist with Motorola R5 model selection, accessories, programming and MOTOTRBO system compatibility.
ASK ABOUT THE MOTOROLA R5Motorola R5 Programming and System Integration
A professional two-way radio is only as effective as its programming and the network supporting it. MiningTelecoms supplies Motorola R5 radios configured around each organisation’s frequencies, channels, talkgroups, user roles, coverage requirements and emergency procedures.
Radios can arrive labelled, programmed and ready for deployment rather than requiring customers to configure generic out-of-box equipment.
Custom R5 Radio Programming
MiningTelecoms can configure the Motorola R5 for analogue, conventional digital and MOTOTRBO network operation. Programming can include:
- Licensed UHF or VHF frequencies
- Digital colour codes and timeslots
- Talkgroups and receive-group lists
- Channel zones and user profiles
- Scan lists and priority scanning
- Individual and group calling
- Button and control assignments
- Voice announcements
- Text messaging and data functions
- Privacy and encryption options where authorised
- Radio identification and fleet numbering
Emergency and Worker-Safety Configuration
Emergency features must reflect the organisation’s actual response process. MiningTelecoms can configure and test:
- Dedicated emergency-button operation
- Digital emergency signalling
- Man Down and Fall Alert
- Lone Worker monitoring
- Emergency channels and talkgroups
- Transmit Interrupt
- Emergency search tones
- Remote Monitor
- Radio Disable and Enable
- Location-supported dispatch workflows
Emergency functionality should be tested across the complete radio system and incorporated into the organisation’s documented procedures.
Existing Fleet Migration
MiningTelecoms can review an existing Motorola codeplug and recreate the required channel, zone, talkgroup and safety structure for the R5. This supports staged migrations from DP4801e, DP4800e and other compatible MOTOTRBO fleets while maintaining operational continuity.
Each configuration should be validated rather than copied blindly, because R5 features, button assignments, audio profiles and software options differ from older radios.
MOTOTRBO Network Integration
The R5 can be integrated into existing or new MOTOTRBO infrastructure, including:
- Analogue and digital conventional systems
- IP Site Connect networks
- Capacity Plus single-site and multi-site systems
- Motorola repeaters and system infrastructure
- Radio Management and compatible dispatch applications
- Indoor and outdoor location solutions
- IMPRES battery-management environments
MiningTelecoms can help determine whether an existing system can support the required users and coverage or whether repeaters, antennas, linked sites or additional capacity should be considered.
Motorola R5 vs DP4801e: Is the R5 the Right Upgrade?
The Motorola DP4801e remains a capable full-keypad MOTOTRBO™ radio with extensive connectivity, messaging and system options. The newer Motorola R5 provides a more compact platform with substantially stronger audio, advanced noise suppression and simplified controls for dependable everyday voice communication.
Whether the R5 is the appropriate replacement depends on how the DP4801e fleet is currently used. Organisations primarily requiring clear voice communication may benefit from the R5, while users relying on a full keypad, colour display, integrated location services or advanced MOTOTRBO system features may need to retain the DP4801e or consider another Motorola model.
| FEATURE | MOTOROLA R5 LIMITED KEYPAD | MOTOROLA DP4801e |
|---|---|---|
| Frequency options | VHF 136–174 MHz; UHF 400–527 MHz | VHF 136–174 MHz; UHF 403–527 MHz |
| Maximum RF output | 5 W VHF; 4 W UHF | 5 W VHF; 4 W UHF |
| Channel capacity | Up to 256 channels | Up to 1,000 channels |
| User interface | Limited keypad with simplified controls | Full keypad and navigation controls |
| Display | 1.5-inch monochrome display | Five-line colour display |
| Rated/max audio output | 1 W rated; up to 3 W maximum | 0.5 W rated |
| Noise management | SINC+ and AI-trained noise suppression, Intelligent Audio and automatic acoustic feedback suppression | SINC+ noise cancellation, Intelligent Audio and acoustic feedback suppression |
| Maximum programmable loudness | Up to 106 phon at 30 cm | Not specified by Motorola in the DP4000e datasheet |
| Bluetooth® | Not listed as an integrated R5 feature | Bluetooth 4.0 |
| Wi-Fi | Not listed as an integrated R5 feature | Integrated 802.11 b/g/n Wi-Fi |
| Location services | Not listed as an integrated R5 feature | GPS and GLONASS |
| Radio systems | Conventional, IP Site Connect and Capacity Plus | Conventional, IP Site Connect, Capacity Plus and optional Capacity Max |
| Dust and water protection | IP67 | IP68 |
| Ruggedness | Tested to MIL-STD-810H | Tested to MIL-STD-810G |
| Weight with standard/slim battery | Approximately 285 g | Approximately 325–347 g, depending on battery |
| Maximum stated digital runtime | Up to 32 hours VHF or 30 hours UHF with the 3200 mAh battery | Up to 29 hours VHF or 28 hours UHF with the 3000 mAh battery |
Specifications vary according to frequency band, battery, purchased software options and radio configuration. Battery figures are based on Motorola’s stated 5/5/90 test profile; actual operating time will vary.
Why Consider Moving from the DP4801e to the Motorola R5?
The most significant R5 improvement is its audio performance. Its wideband speaker provides 1 W rated audio and up to 3 W maximum output, supported by AI-trained noise suppression, SINC+ noise suppression, Intelligent Audio and automatic acoustic feedback suppression.
This makes the R5 particularly suitable for workers operating around machinery, vehicles, workshops, processing equipment and other locations where background noise can make radio calls difficult to understand.
The R5 is also smaller and lighter than the DP4801e and offers longer maximum battery runtime when equipped with Motorola’s 3200 mAh IMPRES™ battery.
When Is the R5 the Better Choice?
Consider the Motorola R5 when users primarily require:
- Loud and clear voice communication
- Advanced background-noise suppression
- Simplified limited-keypad or non-keypad operation
- A smaller and lighter radio
- Long battery runtime
- Conventional, IP Site Connect or Capacity Plus operation
- A modern radio intended for task-focused everyday communication
When Should You Retain the DP4801e or Consider Another Model?
The R5 may not be a direct replacement where users depend on:
- A full keypad and colour display
- Up to 1,000 channels
- Free-form text messaging or Work Order Ticketing
- Integrated Bluetooth or Wi-Fi
- Integrated GPS or GLONASS location services
- Capacity Max operation
- IP68 submersion protection
- Existing DP4000e-series batteries, chargers or audio accessories
The R5 uses a newer slim accessory interface and its own battery and charging platform, so existing DP4801e accessories should not be assumed to be compatible.
Can the R5 Work With an Existing DP4801e Fleet?
Yes. The Motorola R5 can generally communicate with DP4801e radios when both are programmed with compatible frequencies, channel bandwidths, colour codes, timeslots, talkgroups, privacy settings and radio-system configurations.
However, compatibility should be confirmed before deployment because the R5 does not provide every connectivity, application and trunking feature available on the DP4801e.
MiningTelecoms can review an existing DP4801e codeplug and radio system, confirm whether the R5 is an appropriate replacement and professionally program the new radios for staged fleet migration.
Motorola R5 vs R7: Which Two-Way Radio Is Right for Your Operation?
The Motorola R5 and Motorola R7 are current-generation MOTOTRBO™ digital two-way radios designed for professional and industrial communication. Both provide powerful audio, advanced noise suppression, rugged construction and analogue and digital operation, but they are intended for different operational requirements.
The R5 is a compact, voice-focused radio suited to organisations that need loud, clear and dependable everyday communication. The R7 is Motorola’s more advanced platform, offering a larger colour display, enhanced dual-microphone audio processing, integrated wireless connectivity, location services and support for more sophisticated MOTOTRBO systems.
| FEATURE | MOTOROLA R5 LIMITED KEYPAD | MOTOROLA R7 FULL KEYPAD |
|---|---|---|
| Frequency options | VHF 136–174 MHz; UHF 400–527 MHz | VHF 136–174 MHz; UHF 400–527 MHz |
| Maximum RF output | 5 W VHF; 4 W UHF | 5 W VHF; 4 W UHF |
| Channel capacity | Up to 256 channels | Up to 1,000 channels |
| Display | 1.5-inch, 132 × 48-pixel monochrome display | 2.4-inch, 320 × 240-pixel colour display |
| Keypad | Limited keypad | Full keypad |
| Rated/max audio output | 1 W rated; up to 3 W maximum | 1 W rated; up to 3 W maximum |
| Noise management | SINC+ single-microphone noise suppression and AI-trained noise suppression | Adaptive dual-microphone noise cancellation and AI-trained noise suppression |
| Maximum programmable loudness | Up to 106 phon at 30 cm | Up to 107 phon at 30 cm |
| Bluetooth® | Not listed as an integrated R5 feature | Bluetooth 5.2 |
| Wi-Fi | Not listed as an integrated R5 feature | Dual-band 2.4 GHz and 5 GHz Wi-Fi 5 |
| Location services | Not listed as an integrated R5 feature | GPS, GLONASS, Galileo and BeiDou |
| Radio systems | Conventional, IP Site Connect and Capacity Plus | Conventional, IP Site Connect, Capacity Plus and Capacity Max |
| Dust and water protection | IP67 | IP68 and IP66 |
| Ruggedness | Tested to MIL-STD-810H | Tested to MIL-STD-810H |
| Weight with slim battery | Approximately 285 g | Approximately 316 g |
| Maximum stated digital runtime | Up to 32 hours VHF or 30 hours UHF | Up to 29 hours VHF or 28 hours UHF |
| Accessory interface | Slim GCAI connector | GCAI-Mini connector |
Specifications vary according to model, frequency band, battery, enabled software features and radio-system configuration. Battery figures are based on Motorola’s stated 5/5/90 test profile; actual operating time will vary.
Choose the Motorola R5 When You Need:
- Loud and clear professional voice communication
- Advanced noise suppression in a compact radio
- Straightforward limited-keypad or non-keypad operation
- A smaller and lighter radio for everyday use
- Long battery runtime across extended shifts
- Conventional, IP Site Connect or Capacity Plus operation
- A streamlined radio without integrated Wi-Fi, Bluetooth or location services
- A practical fleet radio for construction, manufacturing, transport, security and commercial operations
The R5 is particularly well suited to task-focused users who primarily need dependable push-to-talk communication without the more advanced display, connectivity and system capabilities of the R7.
Choose the Motorola R7 When You Need:
- Motorola’s most advanced portable-radio audio processing
- Adaptive dual-microphone noise cancellation
- A large colour display and full keypad
- Up to 1,000 channels
- Integrated Bluetooth 5.2 and dual-band Wi-Fi
- Outdoor and indoor location capabilities
- Free-form text messaging and Work Order Ticketing
- Capacity Max or other advanced MOTOTRBO system operation
- IP68 submersion and IP66 high-pressure water-jet protection
- Advanced security, application and fleet-management capabilities
The R7 is the stronger choice for extremely noisy, safety-critical or operationally complex workplaces where users need more than basic voice communication.
Which Radio Has Better Audio?
Both radios provide 1 W rated audio output and up to 3 W maximum output, Intelligent Audio, IMPRES™ audio processing, AI-trained noise suppression and automatic acoustic feedback suppression.
The R7 provides the more advanced audio platform, using adaptive dual-microphone noise cancellation and offering maximum programmable loudness of up to 107 phon. The R5 uses SINC+ single-microphone noise suppression and reaches up to 106 phon.
For most everyday industrial communication, the R5 provides exceptionally strong and clear audio. The R7 has the advantage in severe and rapidly changing noise environments.
Which Radio Has Better Battery Life?
The R5 provides the longer maximum stated runtime. With its 3200 mAh IMPRES battery, Motorola specifies up to 32 hours of digital operation on VHF or 30 hours on UHF.
The R7 provides up to 29 hours on VHF or 28 hours on UHF with its 3200 mAh HazLoc battery. Actual runtime for either radio depends on transmit power, enabled features, signal conditions and operating patterns.
Can the Motorola R5 and R7 Work Together?
Yes. Motorola R5 and R7 radios can generally operate together when programmed with compatible frequencies, channel bandwidths, colour codes, timeslots, talkgroups, privacy settings and radio-system configurations.
This allows organisations to use R5 radios for task-focused users while deploying R7 radios to supervisors, safety personnel or workers requiring advanced connectivity and system features.
The batteries, chargers and audio accessories are not interchangeable because the R5 and R7 use different accessory interfaces and battery platforms.
R5 or R7: Our Recommendation
Choose the Motorola R5 when the priority is clear voice communication, simple operation, low weight and long battery runtime.
Choose the Motorola R7 when the operation requires the strongest noise management, a full keypad and colour display, integrated connectivity, location services, Capacity Max or advanced safety and data functionality.
MiningTelecoms can assess your frequencies, coverage requirements, operating environment, user roles and existing MOTOTRBO infrastructure to recommend and professionally program the correct combination of R5 and R7 radios.
