Motorola R7 Digital Two-Way Radio
Loud. Rugged. Connected.
Motorola R7 Portable Radio – The Complete Digital Solution
The Motorola R7 is a premium MOTOTRBO™ digital two-way radio engineered for loud, demanding and safety-critical workplaces. Advanced noise cancellation, powerful audio and rugged construction help workers hear and be heard clearly across mining, construction, manufacturing, transport and commercial operations.
- Advanced noise cancellation and intelligent audio
- Rugged design for demanding site conditions
- Large 2.4-inch colour display
- UHF and VHF models available
- Wi-Fi, Bluetooth® and location connectivity
- Analogue and MOTOTRBO digital operation
- Capacity Plus and Capacity Max compatible
- Professionally programmed and supported in Australia
We don’t just sell radios—we deliver commercial communication lifelines.
Motorola R7: Exceptional Audio for Demanding Workplaces
The Motorola R7 is engineered for organisations where clear, immediate communication is essential to safety and productivity. Combining advanced audio processing with rugged MOTOTRBO™ technology, the R7 allows teams to communicate confidently around heavy machinery, vehicles, processing equipment, crowds and other sources of background noise.
Front and rear microphones work with advanced noise cancellation to reduce disruptive background sound, while intelligent audio automatically adjusts the radio’s volume as surrounding noise changes. Automatic acoustic feedback suppression also helps prevent the loud feedback commonly caused when multiple radios operate close together.
Available in UHF and VHF configurations, the Motorola R7 can operate across analogue and MOTOTRBO digital radio systems. It supports conventional operation and scalable MOTOTRBO solutions including IP Site Connect, Capacity Plus and Capacity Max, making it suitable for anything from a single worksite to a large multi-site radio network.
MiningTelecoms supplies and professionally programs Motorola R7 radios for Australian mining, construction, manufacturing, logistics, security, education and infrastructure operations. Every fleet can be configured around the customer’s frequencies, talkgroups, emergency procedures, coverage requirements and operating environment.
Motorola R7 Benefits and Features

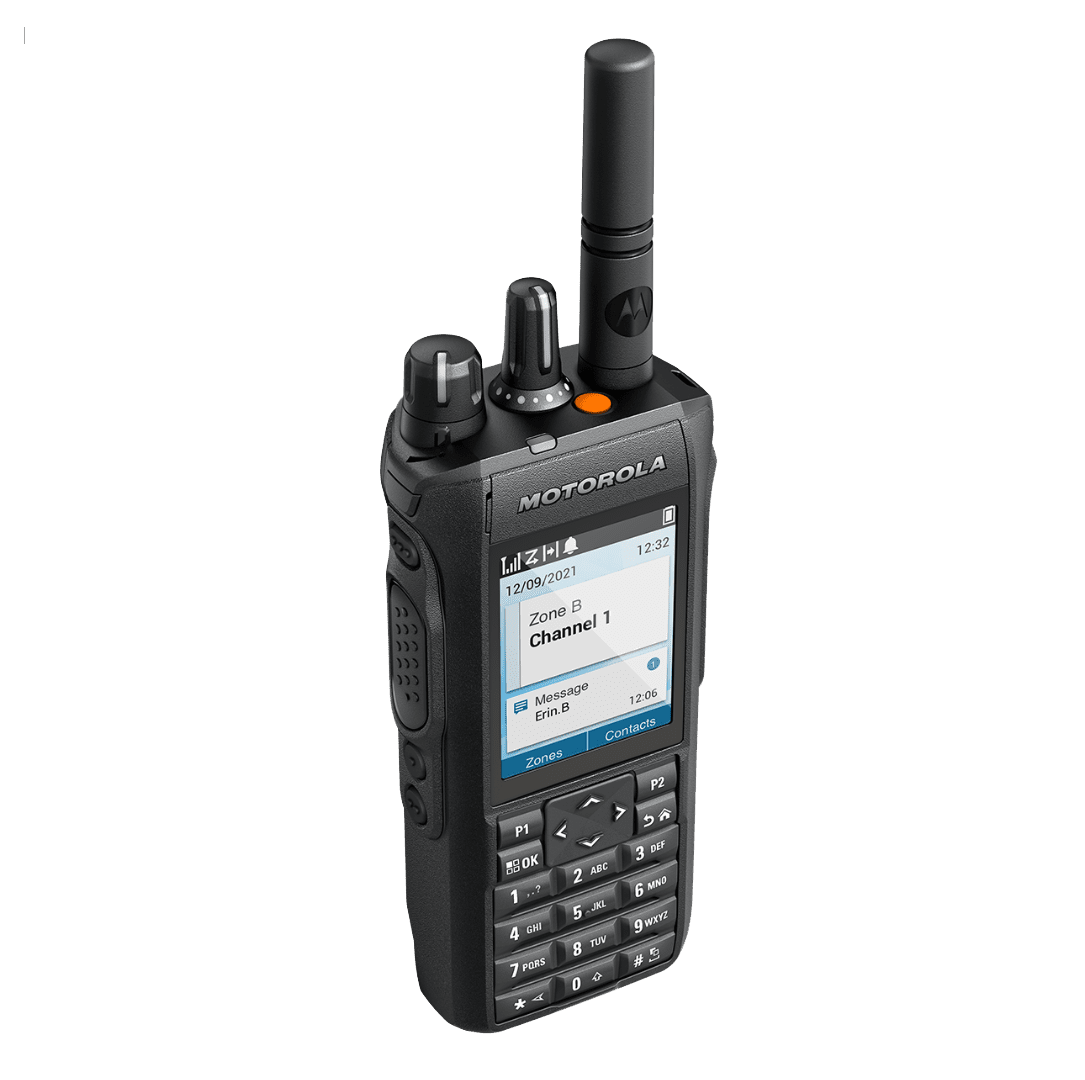

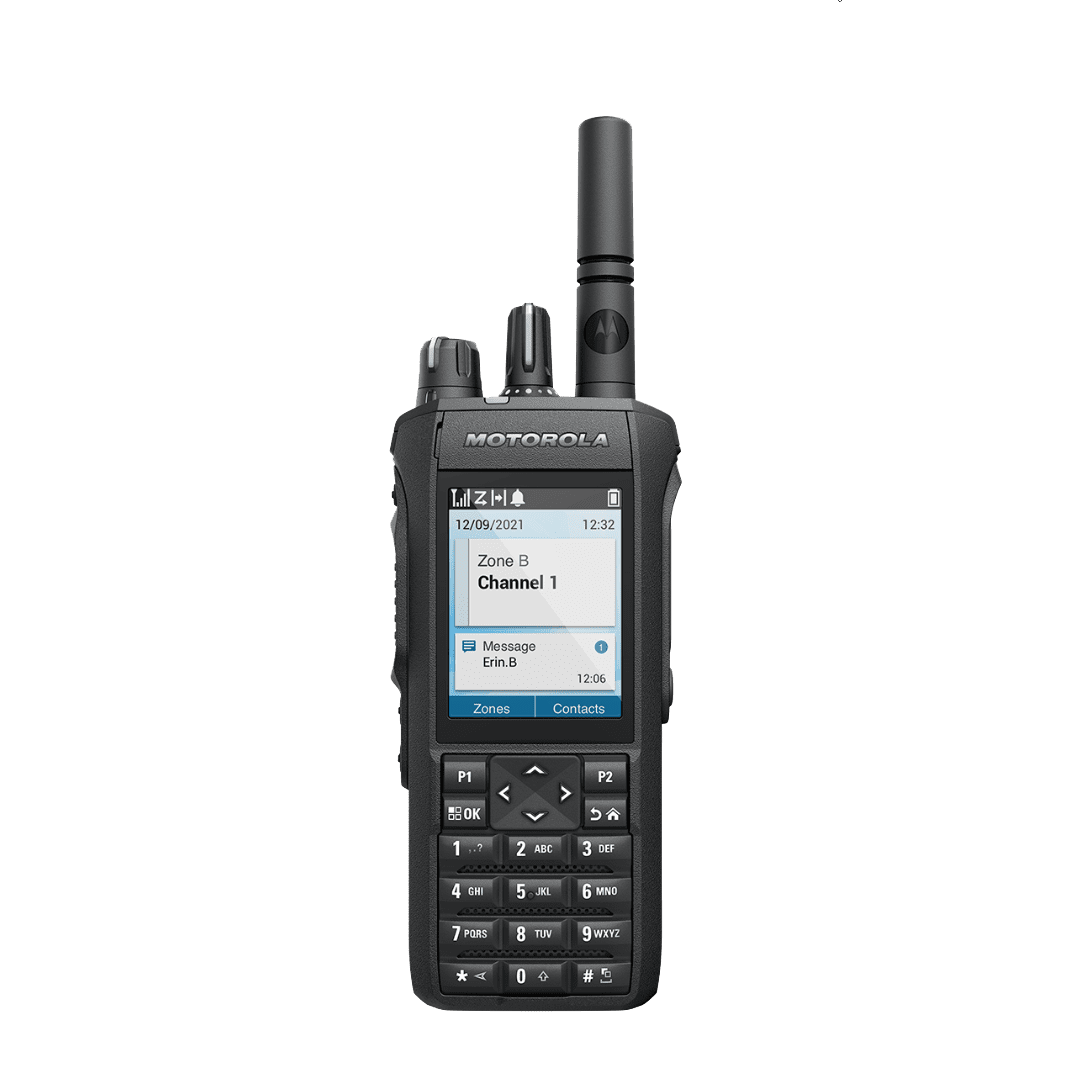

Large Colour Display
Full-keypad models feature a clear 2.4-inch, 320 × 240-pixel display designed for intuitive navigation and fast access to critical information.
Designed for Easy Operation
Tactile controls, an intuitive interface and a balanced ergonomic design make the R7 comfortable to operate throughout long shifts.
Long-Shift Battery Performance
Motorola IMPRES™ battery options provide dependable power management for extended shifts and demanding operational environments.
Advanced Noise Cancellation
Front and rear microphones suppress disruptive background noise so voice communications remain clear around machinery, vehicles and crowds.
Optimised Radio Performance
Advanced antenna technology and MOTOTRBO digital processing provide dependable voice communication across properly designed radio networks.
Wi-Fi and Bluetooth® Connectivity
Advanced wireless connectivity supports compatible accessories, software updates and integrated MOTOTRBO applications.
Scalable MOTOTRBO Operation
Supports analogue and digital conventional operation, with options for IP Site Connect, Capacity Plus and Capacity Max radio systems.
Why the Motorola R7 Excels in High-Noise Environments
Missed or misunderstood radio calls can create delays, repeated instructions and serious safety risks. The Motorola R7 is engineered to deliver clear voice communication in environments where machinery, vehicles, equipment and surrounding activity can overwhelm an ordinary two-way radio.
Advanced Noise Cancellation
Front and rear microphones capture the user’s voice while advanced audio processing suppresses disruptive background noise. This helps workers transmit clearer messages from processing plants, workshops, loading areas, construction sites and other high-noise locations.
Automatic Acoustic Feedback Suppression
When multiple radios are operating close together, audio feedback can produce an uncomfortable and distracting squeal. The R7 automatically suppresses this feedback in digital mode, allowing teams to communicate more effectively in control rooms, vehicles, meeting points and crowded work areas.
Intelligent Audio
The Motorola R7 monitors changes in surrounding noise and automatically adjusts the speaker volume. Calls remain audible when a user moves into a louder environment, while the volume reduces when conditions become quieter—minimising the need for constant manual adjustment.
With powerful audio, advanced noise reduction and intelligent volume control working together, the Motorola R7 helps users hear and be heard clearly the first time.
Built for Demanding Australian Worksites
The Motorola R7 is designed for dependable operation in harsh industrial, commercial and outdoor environments. Its rugged housing helps protect the radio from dust, water, vibration, temperature changes and the impacts encountered during demanding daily use.
An IP68 rating means the R7 has been tested against dust ingress and submersion in water at depths of up to two metres for two hours. Its IP66 rating also provides protection against powerful water jets, making the radio suitable for exposed worksites, washdown areas and operations where equipment may encounter heavy rain or water spray.
The R7 is tested to MIL-STD-810 for environmental conditions including shock, vibration, temperature extremes, humidity, rain, dust and salt fog. A robust, corrosion-resistant side connector further protects one of the radio’s most frequently used connection points.
For organisations operating across mining, construction, manufacturing, transport, utilities and infrastructure, this durability helps reduce equipment downtime and provides workers with a radio they can rely on throughout demanding shifts.
Motorola R7 Durability
- IP68 dust and water protection
- Submersion tested to 2 metres for 2 hours
- IP66 high-pressure water-jet resistance
- Rugged to MIL-STD-810
- Shock and vibration tested
- Resistant to humidity and temperature extremes
- Salt-fog and blowing-dust testing

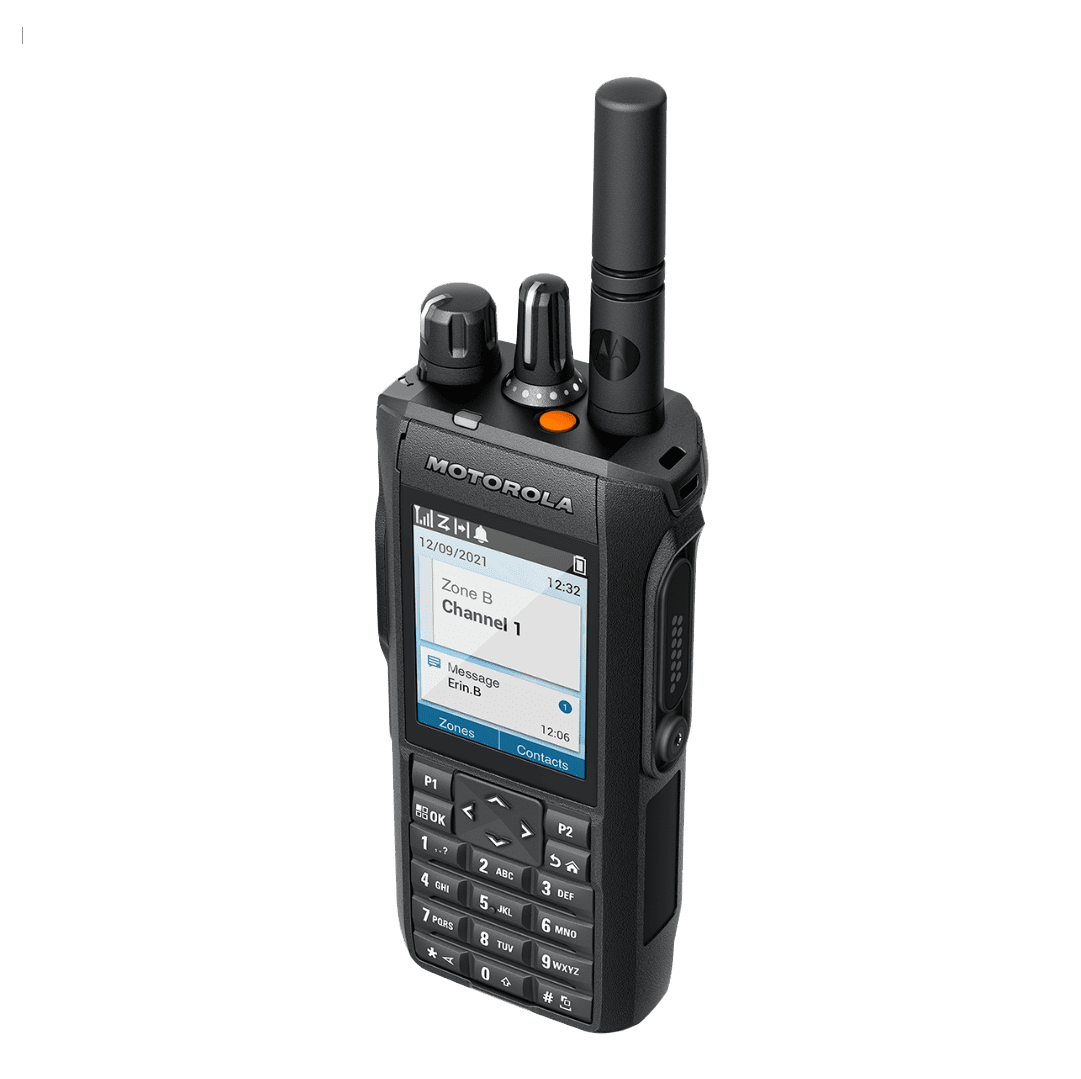

- Corrosion-resistant side connector
- Radio operating range from −30°C to +60°C
Connected and Scalable MOTOTRBO Communications
The Motorola R7 can operate as part of anything from a straightforward on-site radio fleet to a large, multi-site MOTOTRBO network. Its voice, data and wireless connectivity options allow organisations to expand coverage, improve fleet management and integrate radio communications with compatible business and safety applications.
Analogue and Digital Operation
The R7 supports both analogue and MOTOTRBO digital operation, allowing organisations to introduce new radios while maintaining compatibility with an existing analogue fleet. Users can then transition to digital communications at a practical pace.
Conventional, Capacity Plus and Capacity Max
The Motorola R7 supports conventional radio operation, IP Site Connect, Capacity Plus and Capacity Max. This makes it suitable for single-site systems, linked multi-site networks and high-capacity DMR Tier III trunked radio systems.
Wi-Fi and Bluetooth® 5.2
Integrated 2.4 GHz and 5 GHz Wi-Fi supports compatible over-the-air software updates and radio-management functions. Bluetooth® 5.2 connects the R7 with compatible wireless audio accessories and data devices.
Location and Safety Integration
Supported GNSS technologies include GPS, GLONASS, Galileo and BeiDou. When appropriately configured, location information can support compatible workforce-management, dispatch and safety applications across a MOTOTRBO system.
MiningTelecoms can design, program and integrate the Motorola R7 into new or existing MOTOTRBO infrastructure, including repeaters, IP Site Connect, Capacity Plus and Capacity Max networks.
Motorola R7 Worker-Safety Features
Reliable communication becomes critical when a worker needs assistance, misses a scheduled response or experiences an emergency. When appropriately programmed and supported by the radio system, the Motorola R7 provides a range of safety functions that can help organisations establish faster and more consistent emergency-response procedures.
Dedicated Emergency Button
The prominent orange emergency button can be programmed to initiate a site-specific emergency sequence. Depending on the radio-system design, this may alert other radios, notify a control room, open the microphone or move the user to a designated emergency channel or talkgroup.
Man Down and Fall Alert
The R7’s integrated accelerometer can support Man Down and Fall Alert functionality. If the radio detects a configured change in movement or orientation, it can warn the user and initiate an emergency response if the warning is not cancelled.
Lone Worker Monitoring
Lone Worker can require the radio user to provide confirmation at programmed intervals. If the user does not respond, the radio can generate an alert according to the organisation’s configured escalation procedure.
Location-Supported Response
Integrated GNSS capabilities can provide outdoor location information to compatible MOTOTRBO dispatch and workforce-management applications. This can help authorised personnel identify the location of a radio user during an incident.
Configurable Safety Functions
- Dedicated emergency button
- Digital emergency signalling
- Man Down and Fall Alert
- Lone Worker monitoring
- Emergency search tone
- Transmit Interrupt
- Remote Monitor
- Radio Disable and Enable
- GPS and multi-constellation GNSS
- Indoor-location support
- Compatible dispatch integration
- Site-specific emergency programming
Radio safety features must be correctly programmed, tested and incorporated into an organisation’s documented emergency procedures. Feature availability depends on the selected R7 model, software options and radio-system configuration. MiningTelecoms can configure and test emergency workflows around your site requirements.
Motorola R7 Applications Across Australian Industries
The Motorola R7 is suited to organisations that need dependable voice communication across noisy, physically demanding or operationally complex workplaces. MiningTelecoms can configure each radio fleet around the site’s frequencies, coverage, user groups, safety procedures and MOTOTRBO infrastructure.
Mining and Resources
Powerful audio and advanced noise cancellation help workers communicate around processing plants, workshops, mobile equipment and surface-mining operations. The R7 can integrate with conventional, Capacity Plus and Capacity Max mining radio networks.
Construction
Rugged IP66/IP68 protection, intuitive controls and clear audio make the R7 suitable for supervisors, crane crews, traffic controllers, safety personnel and contractors working across active construction sites.
Manufacturing and Processing
The R7 helps teams communicate around machinery, production lines and material-handling equipment. Intelligent Audio and automatic feedback suppression support clearer communication as workers move between changing noise environments.
Transport and Logistics
Warehouses, distribution centres, ports, airports and transport yards can use the R7 to coordinate loading, dispatch, security, vehicle movements and operational teams across large sites.
Security and Large Facilities
Full-keypad models provide an intuitive display and advanced messaging options for security teams, event operations, hospitals, campuses and large commercial facilities requiring organised talkgroups and emergency functionality.
Utilities and Infrastructure
The R7 supports field crews working across energy, water, telecommunications, maintenance and public-infrastructure operations where ruggedness, reliable coverage and worker-safety features are important.
Organisations operating in classified explosive atmospheres may require the purpose-built Motorola R7Ex rather than the standard R7. MiningTelecoms can assist with radio selection based on the site environment and operational requirements.
Motorola R7 Frequently Asked Questions
The following answers cover common questions about Motorola R7 models, frequencies, battery performance, MOTOTRBO compatibility, hazardous-area use and professional programming.
Is the Motorola R7 available in UHF and VHF?
Yes. The Motorola R7 is available in VHF 136–174 MHz and UHF 400–527 MHz configurations. VHF or UHF selection should be based on your licensed frequencies, existing radio fleet, coverage environment and radio-system design. MiningTelecoms can confirm the correct frequency band and antenna for your operation.
What is the difference between the R7 Enable, Capable and Premium?
The R7 Enable is a non-keypad model with no display and supports up to 64 channels. The R7 Capable and R7 Premium are full-keypad models with a 2.4-inch colour display and support up to 1,000 channels. The Premium model is intended for organisations requiring the R7’s more advanced MOTOTRBO feature package, while Capable provides a scalable platform that can be configured with selected features.
Is the Motorola R7 intrinsically safe?
The standard Motorola R7 is available in configurations certified to UL TIA-4950 for specified hazardous locations when correctly equipped with an approved Motorola battery. However, it is not equivalent to an IECEx/ATEX-certified radio. Operations requiring IECEx or ATEX certification should consider the purpose-built Motorola R7Ex.
What is the difference between the Motorola R7 and R7Ex?
The R7 is designed for general industrial, commercial and outdoor operations, with VHF and UHF options and higher transmit power. The R7Ex is a UHF radio specifically engineered and IECEx/ATEX certified for specified explosive gas, combustible-dust and mining environments. Radio selection must reflect the site’s formal hazardous-area classification.
Can the Motorola R7 communicate with DP4801e radios?
Yes. An R7 can generally communicate with DP4801e and other compatible MOTOTRBO radios when programmed with matching frequencies, channel bandwidths, colour codes, timeslots, talkgroups and privacy settings. Some newer R7 features may not be available across older radio models.
Can the Motorola R7 operate in analogue mode?
Yes. The R7 supports analogue and MOTOTRBO digital operation. This allows organisations to introduce R7 radios into an existing analogue fleet and transition to digital communications at a practical pace. Compatibility depends on correct programming and the frequencies authorised for use.
Does the R7 support Capacity Plus and Capacity Max?
Yes. The Motorola R7 supports conventional operation, IP Site Connect, Capacity Plus single-site and multi-site systems, and Capacity Max DMR Tier III networks. Feature availability and system access depend on the selected R7 model, software options and network configuration.
How long does the Motorola R7 battery last?
Runtime depends on battery capacity, frequency band, transmit power, programmed features and radio usage. Under Motorola’s specified test conditions, the 2200 mAh IMPRES battery provides approximately 19–20 hours of digital operation, while the 2850 mAh battery provides approximately 25–26 hours. The 3200 mAh TIA-4950 HazLoc battery provides up to approximately 28 hours on UHF or 29 hours on VHF. Actual operating time will vary.
Can MiningTelecoms program the R7 before delivery?
Yes. MiningTelecoms can supply Motorola R7 radios professionally programmed with the required frequencies, channels, zones, talkgroups, scan lists, receive groups, button assignments and authorised privacy settings. Emergency, Lone Worker, Man Down and location-supported functions can also be configured according to the selected radio and system requirements.
How much does a Motorola R7 cost?
Motorola R7 pricing depends on the frequency band, Enable, Capable or Premium model, standard or TIA-4950 configuration, battery, charger, antenna, software features and accessories selected. Contact MiningTelecoms for a configuration-specific quotation based on your fleet size and operational requirements.
Need Motorola R7 Radios Configured for Your Operation?
MiningTelecoms supplies and professionally programs Motorola R7 radios for mining, construction, industrial and commercial organisations across Australia. We can help select the correct R7 model, frequency band, battery, accessories and MOTOTRBO configuration for your workplace.
Whether you require several replacement radios or a complete multi-site fleet, your R7 radios can arrive programmed, labelled and ready for deployment.
Which Motorola R7 Model Is Right for Your Operation?
The Motorola R7 is available in full-keypad and non-keypad configurations. The correct model depends on the number of channels required, how users interact with the radio and which voice, data, safety and system features need to be enabled.
Motorola R7 Premium
The R7 Premium is the flagship full-keypad model, designed for organisations requiring advanced MOTOTRBO functionality and an intuitive visual interface.
- Full keypad and navigation controls
- 2.4-inch colour display
- Up to 1,000 channels
- Voice and data capability
- Free-form and pre-programmed text messaging
- Advanced audio, connectivity and safety options
- Suitable for sophisticated MOTOTRBO networks
Motorola R7 Capable
The R7 Capable uses the same full-keypad and colour-display format while providing a flexible platform that can be configured around an organisation’s operational requirements.
- Full keypad and colour display
- Up to 1,000 channels
- Analogue and digital operation
- Voice and data capability
- Scalable feature options
- Suitable for conventional and trunked systems
- Can be configured for different user groups
Motorola R7 Enable
The R7 Enable is the simplified non-keypad model for users who need dependable voice communication without a screen or full keypad.
- No display or full keypad
- Up to 64 channels
- Four programmable buttons
- Analogue and digital operation
- Voice-announcement capability
- Advanced R7 audio performance
- Ideal for straightforward, task-focused operation
Motorola R7 features can depend on the selected model, purchased software options and radio-system configuration. MiningTelecoms can identify the appropriate R7 model, frequency band and feature package for each user group, helping organisations avoid paying for unnecessary functionality while ensuring operational and safety requirements are met.
Configure Your Motorola R7
The Motorola R7 is available in multiple hardware, frequency, battery and accessory configurations. MiningTelecoms can identify the correct combination for your workplace, radio system and user requirements, ensuring each radio arrives professionally programmed and ready for deployment.
1. Select the R7 Model
- R7 Enable: Non-keypad model for straightforward, task-focused voice communication.
- R7 Capable: Full-keypad and colour-display model with scalable feature options.
- R7 Premium: Full-keypad flagship model for advanced MOTOTRBO functionality.
2. Choose the Frequency Band
- VHF 136–174 MHz: Often selected for open terrain and particular existing VHF radio networks.
- UHF 400–527 MHz: Commonly used across buildings, industrial sites, construction and mining operations.
The radio and antenna must be selected for the organisation’s licensed frequencies and existing system.
3. Select the Battery and Charging Solution
Available battery options include:
- 2200 mAh slim IMPRES™ battery
- 2450 mAh lithium-ion battery
- 2850 mAh high-capacity IMPRES battery
- 3200 mAh TIA-4950 HazLoc IMPRES battery
- Single-unit Australian IMPRES 2 charger
- Multi-unit charging solutions for radio fleets
MiningTelecoms can match battery capacity and charging infrastructure to shift length, radio usage and fleet size.
Not sure which R7 configuration to order? Provide MiningTelecoms with your existing radio model, frequencies, system type, operating environment and required quantity. We can recommend the appropriate radio, battery, antenna, charger and audio accessories.
4. Choose Audio and Carry Accessories
The R7 supports compatible Motorola accessories including:
- Compact and large remote speaker microphones
- IP68 Windporting speaker microphones
- One-wire, two-wire and three-wire earpieces
- Receive-only clear-tube earpieces
- Bluetooth® audio accessories
- Belt clips and protective carry solutions
Accessory selection should consider workplace noise, PPE, privacy, user comfort and how the radio will be carried.
5. Define Safety and Feature Requirements
Depending on the selected model and software configuration, requirements may include:
- Emergency-button operation
- Man Down and Fall Alert
- Lone Worker
- GNSS location services
- Wi-Fi and Bluetooth
- Text messaging
- Privacy or AES-256 encryption
- Generic Option Board capability
- Capacity Plus or Capacity Max operation
6. Programming and Deployment
MiningTelecoms can configure:
- Frequencies, channels and zones
- Colour codes, timeslots and talkgroups
- Scan and receive-group lists
- Button assignments
- Emergency workflows
- Radio IDs and fleet numbering
- Voice announcements
- Labelling and deployment documentation
Motorola R7 Technical Specifications
The Motorola R7 combines powerful audio, rugged construction and flexible MOTOTRBO functionality in a portable radio designed for demanding professional environments. Specifications vary according to the selected frequency band, full-keypad or non-keypad model, battery and enabled software features.
| Specification | Motorola R7 |
|---|---|
| Frequency bands | VHF: 136–174 MHz; UHF: 400–527 MHz |
| RF output power | Up to 5 W VHF; up to 4 W UHF |
| Channel capacity | Full-keypad: up to 1,000 channels; non-keypad: up to 64 channels |
| Channel spacing | 12.5 kHz, 20 kHz and 25 kHz |
| Operating modes | Analogue and MOTOTRBO digital |
| Digital protocol | ETSI DMR Tier II and DMR Tier III |
| Display | 2.4-inch, 320 × 240-pixel QVGA colour display on full-keypad models |
| Audio output | 1 W rated; up to 3 W maximum |
| Maximum programmable loudness | Up to 107 phon at 30 cm |
| Wi-Fi | 2.4 GHz and 5 GHz Wi-Fi 5 |
| Bluetooth® | Bluetooth 5.2, Classic and Low Energy |
| Location services | GPS, GLONASS, Galileo and BeiDou |
| Radio systems | Conventional, IP Site Connect, Capacity Plus and Capacity Max |
| Water and dust protection | IP68 and IP66 |
| Ruggedness | Tested to MIL-STD-810 |
| Operating temperature | Radio: −30°C to +60°C; battery minimum: −20°C |
| Dimensions with 2200 mAh battery | Full-keypad: 131.8 × 56 × 34.7 mm; non-keypad: 131.8 × 56 × 31.3 mm |
| Weight with 2200 mAh battery | Full-keypad: approximately 316 g; non-keypad: approximately 289 g |
| Battery technology | Motorola IMPRES™ lithium-ion battery options |
| Safety features | Emergency, Lone Worker, Man Down/Fall Alert and digital emergency options |
| Encryption | Basic Privacy, Enhanced Privacy and AES-256 options, subject to configuration and licensing |
Specifications and features may vary according to the Motorola R7 model, frequency band, battery, regional availability, purchased software options and radio-system configuration. MiningTelecoms can confirm the correct configuration for your operational and safety requirements.
Motorola XV Remote Speaker Mic
Designed to deliver Xtreme voice clarity. Selectable audio profiles
IMPRES 2 Multi-Unit Charger
Intelligent charging unit. Allows for up to 6 units at one time.

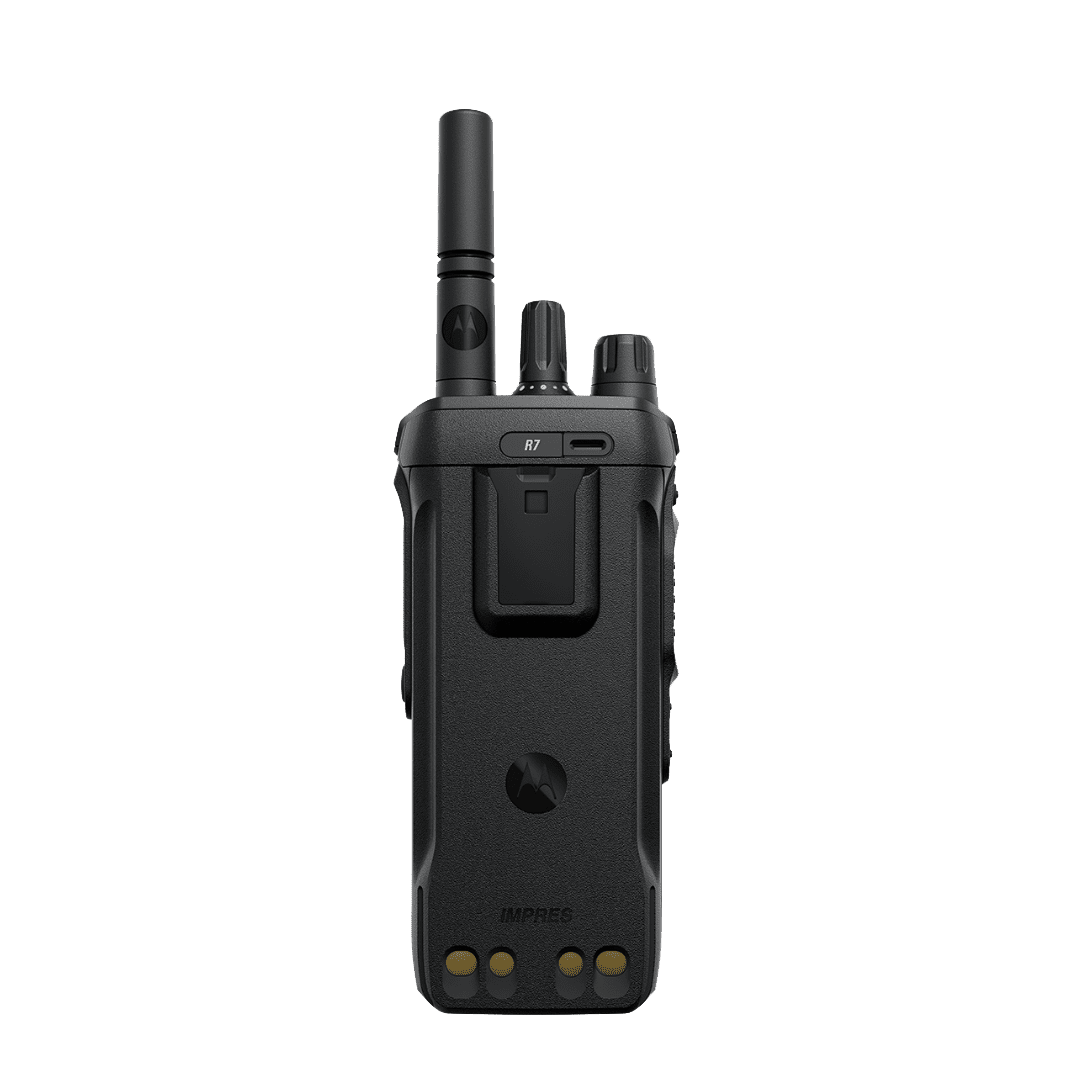

IMPRES 2 Standard Capacity Battery 3850mAH
Other Capacity batteries avail as well as intrinsically safe.
Motorola R7 Battery Options and Operating Times
Motorola IMPRES™ battery technology supports intelligent charging, battery-health information and dependable performance across demanding shifts. Actual runtime depends on the selected battery, frequency band, transmit power, radio configuration and operating pattern.
| Motorola battery | Capacity | Digital runtime: VHF / UHF | Analogue runtime: VHF / UHF |
|---|---|---|---|
| PMNN4807 Slim IMPRES Li-ion | 2200 mAh | 20 / 19 hours | 15 / 14.5 hours |
| PMNN4809 IMPRES Li-ion | 2850 mAh | 26 / 25 hours | 19.5 / 19 hours |
| PMNN4810 HazLoc IMPRES Li-ion | 3200 mAh | 29 / 28 hours | 22 / 21.5 hours |
Battery figures are typical under Motorola’s 5/5/90 test profile at maximum transmitter power, with GNSS, Bluetooth®, Wi-Fi and option-board applications disabled. Actual operating time will vary. The PMNN4810 HazLoc battery does not make the standard R7 equivalent to the IECEx/ATEX-certified Motorola R7Ex.
Motorola R7 Accessories
The Motorola R7 can be configured with genuine Motorola accessories selected around the user’s role, noise environment, shift length and charging requirements. Using compatible audio and energy accessories helps preserve functionality, durability and reliable radio performance.
Remote Speaker Microphones
Compatible remote speaker microphones allow users to transmit and receive without removing the radio from a belt or carry case. Options are available for general operations and demanding noise environments.
Earpieces and Headsets
Discreet earpieces, heavy-duty headsets and hearing-protection solutions can support security, industrial, event and high-noise users. Accessory selection should match the workplace and required level of hearing protection.
IMPRES Batteries and Chargers
Single-unit, multi-unit and IMPRES charging solutions can support anything from individual users to large radio fleets. IMPRES technology assists with battery management and charging performance.
Carry Solutions
Belt clips, carry cases and retention accessories help keep the R7 accessible and secure throughout the shift. The correct option depends on clothing, PPE and how frequently the radio is used.
Antennas and Wireless Accessories
Motorola antennas must match the programmed frequency band. Compatible Bluetooth® audio accessories can also support users who require wireless operation.
MiningTelecoms can supply the Motorola R7 as a complete operational package incorporating the correct battery, charger, antenna, audio accessory and carry solution. Radios can be professionally programmed and labelled before dispatch.
Motorola R7 Documents and Downloads
Access official Motorola R7 product information, specifications, operating instructions and compatible accessory options. Contact MiningTelecoms if you need assistance selecting or configuring an R7 radio fleet.
Can’t find the information you need? MiningTelecoms can assist with Motorola R7 model selection, accessories, programming and MOTOTRBO system compatibility.
ASK ABOUT THE MOTOROLA R7Motorola R7 Programming and System Integration
A professional two-way radio is only as effective as its programming and the network supporting it. MiningTelecoms supplies Motorola R7 radios configured around each organisation’s frequencies, channels, talkgroups, user roles, coverage requirements and emergency procedures.
Radios can arrive labelled, programmed and ready for deployment rather than requiring customers to configure generic out-of-box equipment.
Custom R7 Radio Programming
MiningTelecoms can configure the Motorola R7 for analogue, conventional digital and MOTOTRBO network operation. Programming can include:
- Licensed UHF or VHF frequencies
- Digital colour codes and timeslots
- Talkgroups and receive-group lists
- Channel zones and user profiles
- Scan lists and priority scanning
- Individual and group calling
- Button and control assignments
- Voice announcements
- Text messaging and data functions
- Bluetooth®, Wi-Fi and GNSS settings
- Privacy and encryption options where authorised
- Radio identification and fleet numbering
Emergency and Worker-Safety Configuration
Emergency features must reflect the organisation’s actual response process. MiningTelecoms can configure and test:
- Dedicated emergency-button operation
- Digital emergency signalling
- Man Down and Fall Alert
- Lone Worker monitoring
- Emergency channels and talkgroups
- Transmit Interrupt
- Emergency search tones
- Remote Monitor
- Radio Disable and Enable
- Location-supported dispatch workflows
Emergency functionality should be tested across the complete radio system and incorporated into the organisation’s documented procedures.
Existing Fleet Migration
MiningTelecoms can review an existing Motorola codeplug and recreate the required channel, zone, talkgroup and safety structure for the R7. This supports staged migrations from DP4801e, DP4800e and other compatible MOTOTRBO fleets while maintaining operational continuity.
Each configuration should be validated rather than copied blindly, because R7 features, button assignments, audio profiles and software options differ from older radios.
MOTOTRBO Network Integration
The R7 can be integrated into existing or new MOTOTRBO infrastructure, including:
- Analogue and digital conventional systems
- IP Site Connect networks
- Capacity Plus single-site and multi-site systems
- Capacity Max DMR Tier III networks
- Motorola repeaters and system infrastructure
- Radio Management and compatible dispatch applications
- Indoor and outdoor location solutions
- IMPRES battery-management environments
MiningTelecoms can help determine whether an existing system can support the required users and coverage or whether repeaters, antennas, linked sites or additional capacity should be considered.
Motorola R7 vs DP4801e: Is It Time to Upgrade?
The Motorola DP4801e remains a capable MOTOTRBO radio, but the Motorola R7 introduces a newer hardware platform with substantially improved audio, a larger display, enhanced wireless connectivity and a more modern user interface. It is a logical upgrade for organisations replacing ageing DP4801e fleets or standardising radios across a new MOTOTRBO system.
| Feature | Motorola R7 Premium | Motorola DP4801e |
|---|---|---|
| Frequency options | VHF 136–174 MHz; UHF 400–527 MHz | VHF 136–174 MHz; UHF 403–527 MHz |
| Maximum RF output | 5 W VHF; 4 W UHF | 5 W VHF; 4 W UHF |
| Channel capacity | Up to 1,000 channels | Up to 1,000 channels |
| Display | 2.4-inch, 320 × 240-pixel colour display | Smaller five-line colour display |
| Rated audio output | 1 W, with up to 3 W maximum | 0.5 W rated |
| Noise management | Adaptive dual-microphone and AI-trained noise suppression | SINC+ noise cancellation |
| Maximum programmable loudness | Up to 107 phon | Not specified by Motorola in the DP4000e datasheet |
| Bluetooth® | Bluetooth 5.2 | Bluetooth 4.0 |
| Wi-Fi | Wi-Fi 5 across 2.4 GHz and 5 GHz | 802.11 b/g/n Wi-Fi |
| Location services | GPS, GLONASS, Galileo and BeiDou | GPS and GLONASS |
| Ingress protection | IP66 and IP68 | IP68 |
| Radio systems | Conventional, IP Site Connect, Capacity Plus and Capacity Max | Conventional, IP Site Connect, Capacity Plus and Capacity Max |
| Full-keypad weight* | Approximately 316 g | Approximately 347 g |
| User interface | Modern interface with larger screen and improved navigation | Traditional DP4000e interface |
*R7 weight is shown with the 2200 mAh battery; DP4801e weight is shown with its standard 2250 mAh battery. Battery and accessory selection affects dimensions and weight.
Why Upgrade to the Motorola R7?
The most significant improvement is audio performance. The R7 combines a more powerful speaker with advanced dual-microphone processing, AI-trained noise suppression, Intelligent Audio and automatic acoustic feedback suppression. This makes it particularly valuable around machinery, vehicles, production equipment and other changing noise environments.
The larger display, updated controls, Bluetooth® 5.2 and dual-band Wi-Fi also provide a more modern platform for radio management, compatible applications and future MOTOTRBO fleet development.
Can the R7 Work With an Existing DP4801e Fleet?
Yes. When programmed with compatible frequencies, colour codes, timeslots, talkgroups and system settings, the Motorola R7 can generally operate alongside DP4801e radios on analogue and MOTOTRBO digital networks.
Existing codeplugs should not simply be copied without review. Programming must be rebuilt or converted appropriately and then validated against the organisation’s channels, scan lists, emergency functions, privacy settings and network configuration.
Do All DP4801e Accessories Fit the R7?
No. The R7 uses a different physical accessory interface and battery platform, so existing DP4801e batteries, chargers and many wired audio accessories are not directly interchangeable. An upgrade plan should account for radios, batteries, chargers, carry solutions and audio accessories.
MiningTelecoms can assess an existing DP4801e fleet, reproduce the required channel and talkgroup structure, identify compatible infrastructure and supply Motorola R7 radios professionally programmed for a staged or complete fleet upgrade.
Motorola R7 or Motorola R7Ex?
The Motorola R7 and R7Ex share MOTOTRBO digital functionality, advanced audio and rugged construction, but they are not interchangeable. The correct radio depends primarily on whether workers operate in a general industrial environment or a formally classified hazardous area containing potentially explosive gas, vapour, dust or mining atmospheres.
| Feature | Motorola R7 | Motorola R7Ex |
|---|---|---|
| Primary application | General industrial and commercial operations | Potentially explosive and hazardous environments |
| Frequency bands | VHF 136–174 MHz and UHF 400–527 MHz | UHF 400–470 MHz |
| Maximum RF power | 5 W VHF and 4 W UHF | 2 W |
| Hazardous-area certification | UL TIA-4950 HazLoc option when properly equipped; not IECEx or ATEX certified | IECEx and ATEX certified for gas, dust and mining environments |
| Keypad options | Full-keypad and non-keypad | Full-keypad and non-keypad |
| Display | 2.4-inch colour display on full-keypad models | 1.7-inch colour display on full-keypad models |
| Channel capacity | 1,000 full-keypad; 64 non-keypad | 1,000 full-keypad; 64 non-keypad |
| Noise cancellation | Advanced dual-microphone noise cancellation | SINC+ single-microphone noise cancellation |
| Maximum programmable loudness | Up to 107 phon | Up to 108 phon |
| Battery performance | Multiple IMPRES battery options; runtime varies by battery | Up to 23.5 hours under specified test conditions |
| Ingress protection | IP66 and IP68 | IP66 and IP68 under ATEX/IECEx specifications |
| MOTOTRBO systems | Conventional, IP Site Connect, Capacity Plus and Capacity Max | Conventional, IP Site Connect, Capacity Plus and Capacity Max |
| Typical users | Construction, manufacturing, logistics, security, education and general mining operations | Underground mining, oil and gas, chemical processing and classified hazardous areas |
When Should You Choose the Motorola R7?
Choose the standard Motorola R7 for demanding workplaces that require powerful audio, broad UHF or VHF frequency options, higher transmit power and advanced MOTOTRBO capability but do not require IECEx or ATEX hazardous-area certification.
Its higher RF output, larger full-keypad display and broader battery selection make it an excellent choice for general mining operations, construction sites, manufacturing facilities, transport, security and large commercial campuses.
When Is the Motorola R7Ex Required?
The Motorola R7Ex is designed for workers operating in potentially explosive environments. It carries IECEx and ATEX certifications covering specified gas, combustible-dust and mining atmospheres when used with approved batteries and accessories.
The R7Ex should be considered where a site’s hazardous-area classification or safety requirements specify appropriately certified radio equipment. Examples may include underground mines, fuel-handling areas, oil and gas facilities, chemical plants and locations where combustible dust may be present.
Important Hazardous-Area Guidance
A standard Motorola R7 fitted with a HazLoc battery does not become equivalent to an IECEx/ATEX-certified Intrinsically Safe R7Ex Two-Way Radio. Hazardous-area suitability must be determined according to the site classification, applicable regulations and the complete approved radio, battery and accessory combination.
